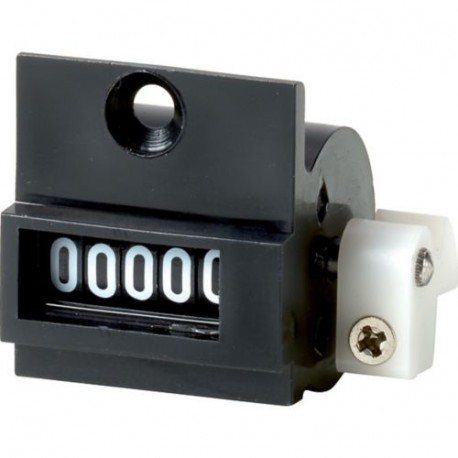

EATON - MOELLER +IZMX-OC-1 +IZMX-OC-1 184128 Y7-184128 EATON ELECTRIC Operations counter. Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-OC-1 184128 Y7-184128 EATON ELECTRIC Operations counter. Can only be sold assembled.

+IZMX-OC-1

184128

Y7-184128

EATON - MOELLER

1 Pcs.

Operations counter. Can only be sold assembled. +IZMX-OC-1 Operations counter Switch operations counters

Automation > Accessories/spare parts for low-voltage switch technology
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller operations counter records mechanical switching cycles on heavy-duty circuit breakers and switchgear to assist maintenance teams in scheduling preventative servicing. Tracking actuation counts ensures critical electrical distribution assets remain within their rated operational lifespans. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Switching cycle counter
  • Accessory (EF013236): No
  • Spare part (EF013237): No

More info

▲
Operations counter
Switch operations counters

General specifications
Product name
Eaton Moeller series IZMX/INX other accessory
Part no.
+IZMX-OC-1
EAN
4015081796533
Product Length/Depth
100 millimetre
Product height
100 millimetre
Product width
100 millimetre
Product weight
0.03 kilogram
Compliances
RoHS conform
Product Tradename
IZMX/INX
Product Type
Accessories
Product Sub Type
Other
Delivery program
Type
Accessory
Special features
Counts the number of On-Off operations. Can also be installed without motor operator.
Used with
IZMX16…, IZMX40…
INX16…, INX40…
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Additional information
Accessory/spare part type
Switching cycle counter
Others
