View larger
Images are for illustrative purposes only. Please refer to data sheet for details

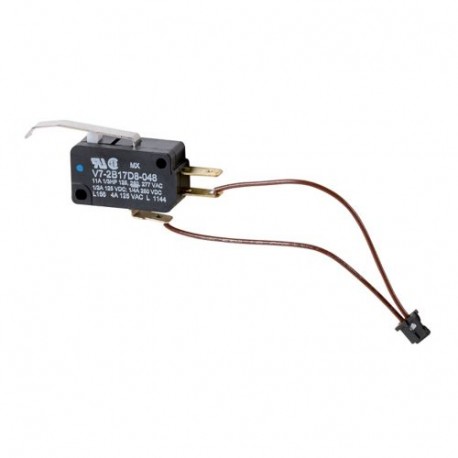

IZMX-LCS-SR-1 184106 Y7-184106 EATON ELECTRIC Signalling switch ready to switch on, 1W (IZMX-SR)
IZMX-LCS-SR-1
184106
Y7-184106
EATON - MOELLER
1 Pcs.
Signalling switch ready to switch on, 1W (IZMX-SR)
IZMX-LCS-SR-1
Eaton Moeller series IZMX/INX - ACB. Signalling switch ready to switch on, 1W (IZMX-SR)
Accessories, Operational readiness indicator with plug for direction connection to spring release, Automatic closing after readiness for operation., Can only be used together with a closing release, For use with IZMX16..., IZMX40..., INX16..., INX40..., 1 changeover contact
Automation > Auxiliary contact block
Circuit Breakers IZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series IZMX/INX auxiliary contact block
Catalog Number
184106
Model Code
IZMX-LCS-SR-1
EAN
4015081783137
Product Length/Depth
100 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
0.023 kg
Compliances
RoHS conform
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 10 A |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Model (EF000010) | Integrable |
| Mounting method (EF000003) | Other |
| Lamp holder (EF000048) | None |
