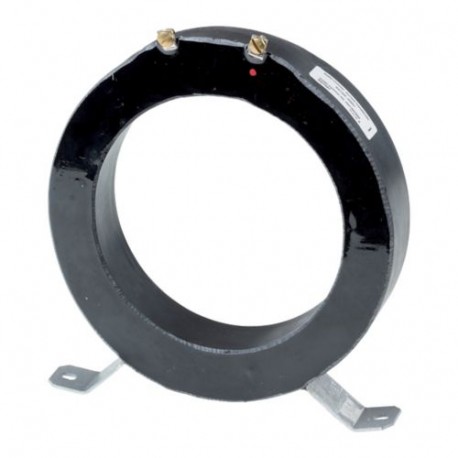

EATON - MOELLER IZMX-CT-NGS-1 IZMX-CT-NGS-1 183937 Y7-183937 EATON ELECTRIC Core-balance transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IZMX-CT-NGS-1 183937 Y7-183937 EATON ELECTRIC Core-balance transformer

IZMX-CT-NGS-1

183937

Y7-183937

EATON - MOELLER

1 Pcs.

Core-balance transformer IZMX-CT-NGS-1 Eaton Moeller series IZMX/INX - ACB. Core-balance transformer Accessories, The core-balance transformer can be used for the earth-fault protection or earth-fault alarm function a) for total current measurements in IZMX16 units or b) for directly measuring the ground fault current at the grounded neutral point., For use with IZMX-DTV-G, +IZMX-DTV-G, +IZMX-DTV-GZ, +IZMX-DTU-A, IZMX-DTU-A, +IZMX-DTU-AZ, +IZMX-DTU-G, IZMX-DTU-G, +IZMX-DTU-AM, IZMX-DTU-AM, +IZMX-DTU-AMZ, IZMX-DTU-GMZ, IZMX-DTU-GM, +IZMX-DTU-GM, +IZMX-DTU-GZ, IZMX-DTP-G, IZMX-DTP-G, +IZMX-DTP-GZ, +IZMX-DTP-GM, +IZMX-DTP-GMZ, IZMX-DTP

Automation > Current transformer
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX current transformer
Catalog Number
183937
Model Code
IZMX-CT-NGS-1
EAN
4015081782666
Product Length/Depth
100 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
2.75 kg
Compliances
RoHS conform

Delivery program

Type
Accessory
Model
Wound primary current converter
Accessory/spare part type
Core-balance transformer
Nominal current
4000 A

Technical data - electrical

Secondary rated current
0 A
Secondary rated apparent power
0 VA
Accuracy class (ratio)
Other
Secondary connection
Screw connection

Technical data - mechanical

Opening diameter
0 mm
Opening height - max
220 mm
Opening width - max
0 mm
Number of inputs (primary)
1

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Fitted with:
Copper rail
Special features
The core-balance transformer can be used for the earth-fault protection or earth-fault alarm function a) for total current measurements in IZMX16 units or b) for directly measuring the ground fault current at the grounded neutral point.
Used with
+IZMX-DTU-GM
IZMX-DTU-A
+IZMX-DTU-AMZ
+IZMX-DTU-GZ
+IZMX-DTP-GM
+IZMX-DTU-A
IZMX-DTU-GM
+IZMX-DTU-G
IZMX-DTP-G
IZMX-DTU-GMZ
+IZMX-DTU-AZ
+IZMX-DTP-GZ
+IZMX-DTV-GZ
IZMX-DTU-AM
+IZMX-DTV-G
IZMX-DTU-G
IZMX-DTV-G
+IZMX-DTP-GMZ
+IZMX-DTU-AM
IZMX-DTP

ETIM for 183937 Low-voltage industrial controls and switchgear (EC002048)
Feature Name Feature Value
Model (EF000010) Wound primary current converter
Rated primary current (EF007405) 4000 A
Rated secondary current (EF007471) 0 A
Rated secondary apparent power (EF007470) 0 VA
Accuracy class (EF008842) Other
Calibrated (EF008836) No
With contact protection (EF008186) No
Opening diameter (EF005153) 0 mm
Snap mounting (EF007462) No
With copper rail (EF007380) Yes
Secondary connection (EF021093) Screw connection
Number of primary inputs (EF006947) 1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
