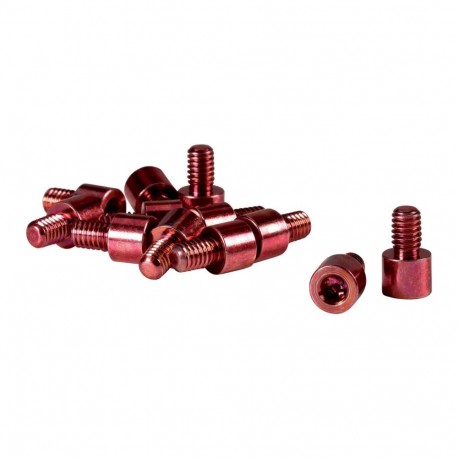

EATON - MOELLER IZMX-CRB-1 IZMX-CRB-1 184197 Y7-184197 EATON ELECTRIC Encoding for removable drive without chassis View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IZMX-CRB-1 184197 Y7-184197 EATON ELECTRIC Encoding for removable drive without chassis

IZMX-CRB-1

184197

Y7-184197

EATON - MOELLER

1 Pcs.

Encoding for removable drive without chassis IZMX-CRB-1 Eaton Moeller series IZMX/INX - ACB. Coding device cassette Accessories, Coding, The user-defined coding ensures that a cassette can only accommodate the circuit-breaker assigned to it., Installation type Withdrawable, For use with IZMX16…W, INX16…W, IZMX40…W, INX40…W

Automation > Accessories/spare parts for low-voltage switch technology
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The IZMX-CRB-1 184197 Y7-184197 EATON ELECTRIC Encoding for removable drive without chassis is a coding part utilized to ensure precise mechanical compatibility and prevent incorrect insertion of withdrawable circuit breaker components. Such encoding elements are standard in complex electrical distribution setups to safeguard specific chassis and breaker pairings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Coding part
  • Accessory (EF013236): Yes
  • Spare part (EF013237): Yes

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX other accessory
Catalog Number
184197
Model Code
IZMX-CRB-1
EAN
4015081783632
Product Length/Depth
300 mm
Product Height
50 mm
Product Width
250 mm
Product Weight
1 kg
Compliances
RoHS conform

Delivery program

Type
Accessory
Accessory/spare part type
Withdrawable units
Coding part
Spare part
Accessory

Technical data - mechanical

Mounting Method
Withdrawable

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Special features
The user-defined coding ensures that a cassette can only accommodate the circuit breaker assigned to it.
Used with
INX16…W
INX40…W
IZMX16…W
IZMX40…W
