> EATON - MOELLER > Circuit Breakers IZM > 303821

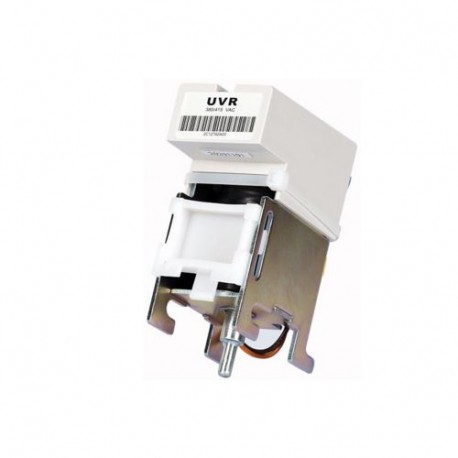

EATON - MOELLER IZM-UVR60DC-1 IZM-UVR60DC-1 303821 Y7-303821 EATON ELECTRIC Minimum voltage trigger 60 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IZM-UVR60DC-1 303821 Y7-303821 EATON ELECTRIC Minimum voltage trigger 60 VDC

IZM-UVR60DC-1

303821

Y7-303821

EATON - MOELLER

1 Pcs.

Minimum voltage trigger 60 VDC IZM-UVR60DC-1. Undervoltage release, 60 V DC Undervoltage release, For use with: IZM63…, IN63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.

Automation > Under voltage coil
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton IZM32/IN32 undervoltage release
Catalog Number
303821
Model Code
IZM-UVR60DC-1
EAN
9010238193130
Product Length/Depth
203.2 mm
Product Height
82.55 mm
Product Width
146.05 mm
Product Weight
0.521 kg
Compliances
RoHS conform

Product specifications

Type
Accessory
Special features
If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.
Used with
IZM63…
IN63…
Accessory/spare part type
Voltage release
Control voltage operating range
60 V DC

ETIM for 303821 Low-voltage industrial controls and switchgear (EC001022)
Feature Name Feature Value
Delayed (EF001541) No
Suitable for power circuit breaker (EF005863) No
Suitable for off-load switch (EF001543) No
Suitable for motor safety switch (EF005826) No
Suitable for overload relay (EF001545) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
