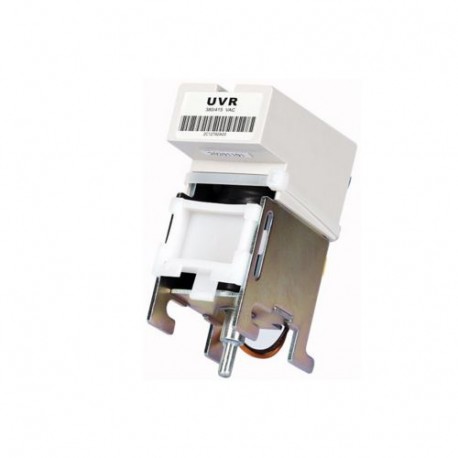

EATON - MOELLER +IZM-UVR48DC-1 +IZM-UVR48DC-1 303818 Y7-303818 EATON ELECTRIC . Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZM-UVR48DC-1 303818 Y7-303818 EATON ELECTRIC . Can only be sold assembled.

+IZM-UVR48DC-1

303818

Y7-303818

EATON - MOELLER

1 Pcs.

. Can only be sold assembled. Minimum voltage trigger 48 VDC +IZM-UVR48DC-1. Undervoltage release, 48 V DC Undervoltage release, For use with: IZM63…, IN63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.

Automation > Under voltage coil
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller +IZM-UVR48DC-1 is an undervoltage release engineered to provide reliable voltage monitoring and emergency tripping functions for high-capacity industrial circuit protection assemblies. These internal modules safeguard complex electrical networks against low-voltage anomalies and unintended load reactivation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Delayed (EF001541): No
  • Suitable for power circuit breaker (EF005863): No
  • Suitable for off-load switch (EF001543): No
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲

General specifications

Product Name
Eaton IZM32/IN32 undervoltage release
Catalog Number
303818
Model Code
+IZM-UVR48DC-1
EAN
9010238193109
Product Length/Depth
203.2 mm
Product Height
82.55 mm
Product Width
146.05 mm
Product Weight
0.521 kg
Compliances
RoHS conform

Product specifications

Type
Accessory
Special features
If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.
Used with
IZM63…
IN63…
Accessory/spare part type
Voltage release
Control voltage operating range
48 V DC

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
