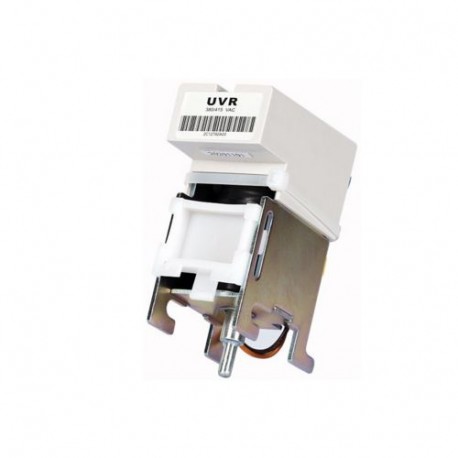

EATON - MOELLER IZM-UVR24DC-1 IZM-UVR24DC-1 303815 Y7-303815 EATON ELECTRIC Minimum voltage trigger 24 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IZM-UVR24DC-1 303815 Y7-303815 EATON ELECTRIC Minimum voltage trigger 24 VDC

IZM-UVR24DC-1

303815

Y7-303815

EATON - MOELLER

1 Pcs.

Minimum voltage trigger 24 VDC IZM-UVR24DC-1. Undervoltage release, 24 V DC Undervoltage release, For use with: IZM63…, IN63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.

Automation > Under voltage coil
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

IZM-UVR24DC-1 303815 Y7-303815 EATON ELECTRIC Minimum voltage trigger 24 VDC is an undervoltage release built by Eaton Moeller. Industrial control panels integrate components of this kind to monitor line conditions and initiate protective breaker openings if the control voltage drops below standard operational limits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Delayed (EF001541): No
  • Suitable for power circuit breaker (EF005863): No
  • Suitable for off-load switch (EF001543): No
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲

General specifications

Product Name
Eaton IZM32/IN32 undervoltage release
Catalog Number
303815
Model Code
IZM-UVR24DC-1
EAN
9010238193079
Product Length/Depth
203.2 mm
Product Height
82.55 mm
Product Width
146.05 mm
Product Weight
0.525 kg
Compliances
RoHS conform

Product specifications

Type
Accessory
Special features
If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.
Used with
IZM63…
IN63…
Accessory/spare part type
Voltage release
Control voltage operating range
24 V DC

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
