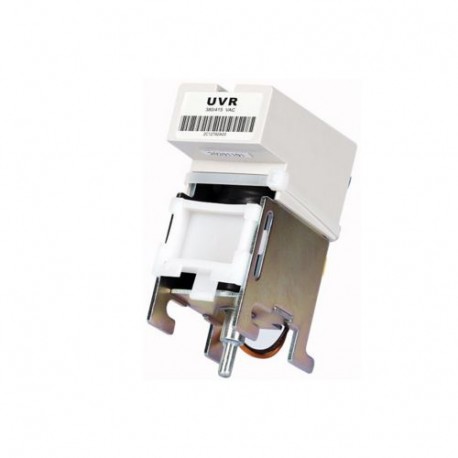

EATON - MOELLER +IZM-UVR24DC-1 +IZM-UVR24DC-1 303814 Y7-303814 EATON ELECTRIC . Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZM-UVR24DC-1 303814 Y7-303814 EATON ELECTRIC . Can only be sold assembled.

+IZM-UVR24DC-1

303814

Y7-303814

EATON - MOELLER

1 Pcs.

. Can only be sold assembled. Minimum voltage trigger 24 VDC +IZM-UVR24DC-1. Undervoltage release, 24 V DC Undervoltage release, For use with: IZM63…, IN63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.

Automation > Under voltage coil
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered by Eaton Moeller, part number +IZM-UVR24DC-1 is an undervoltage release unit supplied exclusively for factory-assembled configurations. These control components disconnect electrical loads instantaneously when input voltage fails, preventing hazardous restart scenarios in complex power distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Delayed (EF001541): No
  • Suitable for power circuit breaker (EF005863): No
  • Suitable for off-load switch (EF001543): No
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲

General specifications

Product Name
Eaton IZM32/IN32 undervoltage release
Catalog Number
303814
Model Code
+IZM-UVR24DC-1
EAN
9010238193062
Product Length/Depth
203.2 mm
Product Height
82.55 mm
Product Width
146.05 mm
Product Weight
0.525 kg
Compliances
RoHS conform

Product specifications

Type
Accessory
Special features
If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.
Used with
IZM63…
IN63…
Accessory/spare part type
Voltage release
Control voltage operating range
24 V DC
