> EATON - MOELLER > Circuit Breakers IZM > 303794

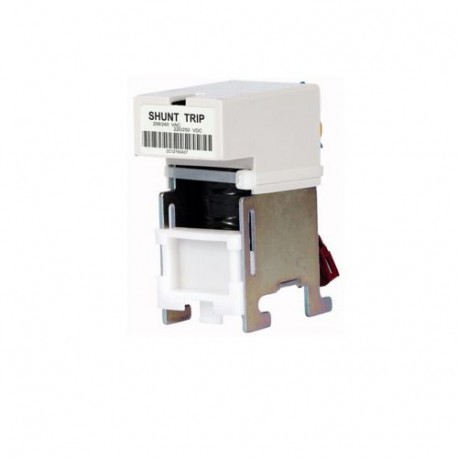

EATON - MOELLER +IZM-STS60DC-1 +IZM-STS60DC-1 303794 Y7-303794 EATON ELECTRIC . Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZM-STS60DC-1 303794 Y7-303794 EATON ELECTRIC . Can only be sold assembled.

+IZM-STS60DC-1

303794

Y7-303794

EATON - MOELLER

1 Pcs.

. Can only be sold assembled. Second Shunt 60 VDC Trigger +IZM-STS60DC-1. Shunt release, (2), 60 V DC Shunt release, Voltage release, For use with: IZM63…, IN63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.

Automation > Shunt release (for power circuit breaker)
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The +IZM-STS60DC-1 303794 Y7-303794 EATON ELECTRIC . Can only be sold assembled. operates as an internal release and control accessory engineered for specialized industrial switchgear configurations. Switchgear components of this nature are integrated into larger electrical assemblies to manage interlocking and signaling functions.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Suitable for power circuit breaker (EF005863): No
  • Suitable for off-load switch (EF001543): No
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲

General specifications

Product Name
Eaton IZM32/IN32 shunt release
Catalog Number
303794
Model Code
+IZM-STS60DC-1
EAN
9010238192898
Product Length/Depth
203.2 mm
Product Height
82.55 mm
Product Width
146.05 mm
Product Weight
0.59 kg
Compliances
RoHS conform

Product specifications

Used with
IZM63…
IN63…
Type
Accessory
Special features
If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.
Accessory/spare part type
Voltage release
Control voltage operating range
60 V DC

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
