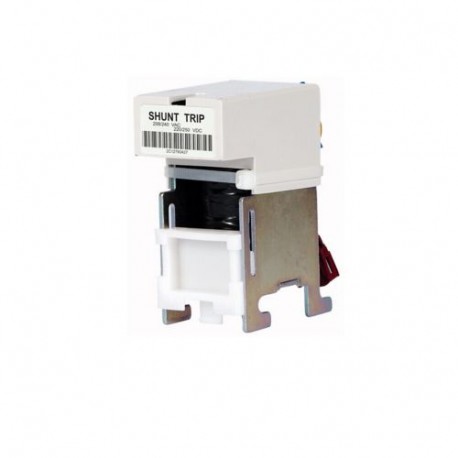

EATON - MOELLER +IZM-ST48DC-1 +IZM-ST48DC-1 303782 Y7-303782 EATON ELECTRIC . Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZM-ST48DC-1 303782 Y7-303782 EATON ELECTRIC . Can only be sold assembled.

+IZM-ST48DC-1

303782

Y7-303782

EATON - MOELLER

1 Pcs.

. Can only be sold assembled. Shunt 48 VDC trigger +IZM-ST48DC-1. Shunt release, 48 V DC Shunt release, Voltage release, For use with: IZM63…, IN63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.

Automation > Shunt release (for power circuit breaker)
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Shunt releases function as internal electrical accessories that enable remote tripping and opening of high-capacity circuit breakers and switchgear. This Eaton Moeller +IZM-ST48DC-1 unit is designed to integrate into specialized modular setups during initial factory assembly.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for power circuit breaker (EF005863): No
  • Suitable for off-load switch (EF001543): No
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲

General specifications

Product Name
Eaton IZM32/IN32 shunt release
Catalog Number
303782
Model Code
+IZM-ST48DC-1
EAN
9010238192799
Product Length/Depth
203.2 mm
Product Height
82.55 mm
Product Width
146.05 mm
Product Weight
0.59 kg
Compliances
RoHS conform

Product specifications

Used with
IN20, 32,40, 63…
IZM20, 32, 40, 63…
IZM63…
IN63…
Type
Accessory
Special features
If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.
Accessory/spare part type
Voltage release
Control voltage operating range
48 V DC
