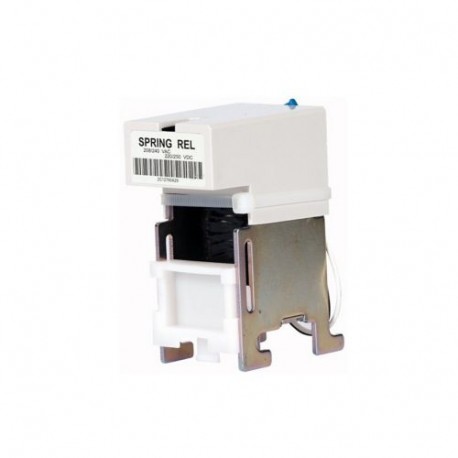

EATON - MOELLER IZM-SR60DC-1 IZM-SR60DC-1 303804 Y7-303804 EATON ELECTRIC Closing electromagnet 60 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IZM-SR60DC-1 303804 Y7-303804 EATON ELECTRIC Closing electromagnet 60 VDC

IZM-SR60DC-1

303804

Y7-303804

EATON - MOELLER

1 Pcs.

Closing electromagnet 60 VDC IZM-SR60DC-1. Spring release, 60 V DC Closing release, Accessories, 5000 & 6300 A, Voltage release, Closing releases, Standard/Approval: IEC, A closing release can be combined with a shunt release and an undervoltage release or with an undervoltage release or with a second shunt release., Rated control voltage: Us 60 DC – V, For use with: IZM63…, IN63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required.

Automation > Shunt release (for power circuit breaker)
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller IZM-SR60DC-1 is an electromagnetic operating component designed for large industrial circuit breakers, facilitating remote closing and switching operations. Closing electromagnets are routinely deployed within automated switchgear and power distribution frameworks to control heavy-duty circuit breaker mechanisms safely. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Suitable for power circuit breaker (EF005863): No
  • Suitable for off-load switch (EF001543): No
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲

General specifications

Product Name
Eaton IZM32/IN32 closing release
Catalog Number
303804
Model Code
IZM-SR60DC-1
EAN
9010238192973
Product Length/Depth
203.2 mm
Product Height
82.55 mm
Product Width
146.05 mm
Product Weight
0.5 kg
Compliances
IEC
RoHS conform

Product specifications

Type
Accessory
Special features
Used with
IZM63…
IN63…
Mounting Method
Plug-in unit
Accessory/spare part type
Voltage release
Control voltage operating range
60 V DC
