> EATON - MOELLER > CAP229164

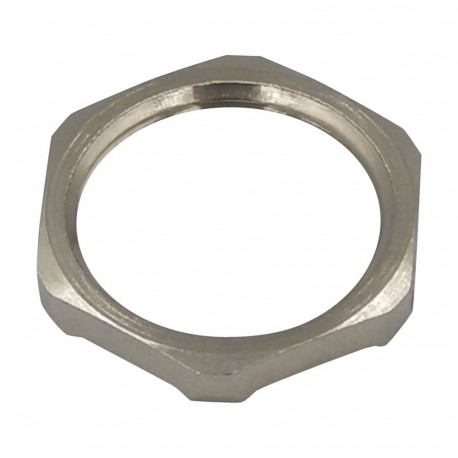

EATON - MOELLER ISO16 NPB EARTHING LOCKNUT ISO16 NPB EARTHING LOCKNUT CAP229164 EATON ELECTRIC ISO16 NPB EARTHING LOCKNUT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ISO16 NPB EARTHING LOCKNUT CAP229164 EATON ELECTRIC ISO16 NPB EARTHING LOCKNUT

ISO16 NPB EARTHING LOCKNUT

CAP229164

CAP229164

EATON - MOELLER

10 Pcs.

ISO16 NPB EARTHING LOCKNUT Eaton Capri Earthing Locknut, Brass, Metric M16, Electroless Nickel Eaton Capri ADE Gland Accessory, ISO16 NPB Earthing Locknut

Cables > Enlargement/reducing ring

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Capri Cable gland accessories/Non-certified accessories
Catalog Number
CAP229164
Model Code
ISO16 NPB EARTHING LOCKNUT
EAN
3589352291641
Product Length/Depth
19.9 mm
Product Height
3.6 mm
Product Width
19.9 mm
Product Weight
2.2 g
Certifications
Not Applicable

Product specifications

Type
Locknut
Application
Locknut
Material
Nickel plated brass
Plating
Electroless nickel
Material quality
Brass
Shape
Other

ETIM for CAP229164 Cable glands and cable entry products (EC000938)
Feature Name Feature Value
Thread type inner thread (EF005703)
Thread size inner thread (metric) (EF003719)
Thread size PG inner thread (EF006443)
Thread size inner thread (inch) (EF005701)
Thread type outer thread (EF005704)
Thread size outer thread (metric) (EF003720)
Thread size PG outer thread (EF006447)
Thread size outer thread (inch) (EF005702)
Material (EF002169)
Material quality (EF001257)
Nickel-plated (EF001206)
Explosion-proof (EF004663)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
