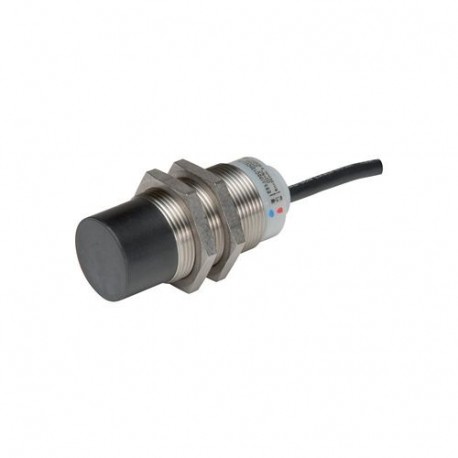

EATON - MOELLER E59-M30C129C02-D1 E59-M30C129C02-D1 136225 Y7-136225 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 29mm, 4L, 6-48VDC, N.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E59-M30C129C02-D1 136225 Y7-136225 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 29mm, 4L, 6-48VDC, N..

E59-M30C129C02-D1

136225

Y7-136225

EATON - MOELLER

1 Pcs.

Proximity switch, inductive, 1N/O, Sn=29mm, 4L, 6-48VDC, NPN, PNP, M30, metal E59-M30C129C02-D1 Proximity switch, Inductive Sensors, Product range: iProx Series, Connection: 3-wire, Design (outer dimensions): M30 x 1.5 mm, Rated operational voltage: Ue= 6 - 48 V DC, Rated switching distance: Sn= 29 mm, Type of mounting: Non-flush, Switching type: NPN, PNP, 2 m connection cable, Contacts N/O = Normally open: 1 N/O, Material: Stainless steel, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2

Automation > Inductive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller E59-M30C129C02-D1 inductive proximity switch provides reliable non-contact detection of metal objects in demanding factory automation settings. Plant engineers implement these switches to verify component placement, monitor rotational speeds, and control mechanical positioning.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor: 0 mm
  • Height of sensor: 0 mm
  • Length of sensor: 70 mm
  • Diameter sensor: 30 mm
  • Mechanical mounting condition for sensor: Not flat
  • Switching distance: 29 mm
  • Suitable for safety functions: No
  • Type of switch function: Normally open contact
  • Type of switching output: PNP
  • Type of electric connection: Cable
  • Number of protected semiconductor outputs: 0
  • Number of protected contact energized outputs: 0
  • Type of actuation: Metallic Target
  • Construction type housing: Cylinder, screw-thread
  • Cascadable: No
  • Max. output current at protected output: 0 mA

More info

▲

General specifications

Product Name
Eaton E59 AccuProx analog inductive proximity sensor
Catalog Number
136225
Model Code
E59-M30C129C02-D1
EAN
4015081330188
Product Length/Depth
152.4 mm
Product Height
44.45 mm
Product Width
127 mm
Product Weight
0.45 kg
Certifications
CSA-C22.2 No. 14
UL File No.: E166051
UL
UL 508
CE
IEC/EN 60947-5-2
Certified by UL for use in Canada
UL Category Control No.: NRKH, NRKH7
CSA File No.: UL report applies to both US and Canada

Product specifications

Type
Inductive sensor
Electric connection type
Cable
Enclosure material finishing
Other
Actuation type
Metallic Target
Enclosure material
Metal
Enclosure type
Cylinder, screw-thread
Category (EN 954-1)
B
Explosion safety category for dust
None
Explosion safety category for gas
None
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-40 °C
Diameter sensor
30 mm
Number of contact energized outputs with signalling function
0
Number of contacts (normally open contacts)
1
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
1
Operational current (Ib) in the switched state at 24 V DC
15 A
Output current at protected output - max
0 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Functions
Protection against wire breakage
Short-circuit protection
Protection against polarity reversal
Voltage type
DC
Mounting method
Non-flush mounting
Material
Stainless steel
Connection type
3-wire
2 m connection cable
Installation type
Not flat
Degree of protection
IP67
IP69
NEMA 4X, 6, 13
Interface type
None
LED indicator
Status indication of Switching state: Red LED
Status indication of Operating voltage: Green LED
Switch function type
Normally open contact
Load current
1 - 300 mA (Ie)
Residual current
0.15 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Switching frequency
145 Hz
Voltage rating - max
48 V
Width sensor
0 mm
Product category
iProx Series
Switching output type
PNP
Temperature drift of sn
10 %
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
48 V
Rated control supply voltage (Us) at DC - min
6 V
Rated switching distance (Sn) - max
29 mm
Repeatability
3 %
Sensor height
0 mm
Sensor length
70 mm
Supply voltage - max
48 V
Supply voltage - min
6 V
Switching hysteresis of Sn
15 %
Voltage drop (Ud)
2.5 V
