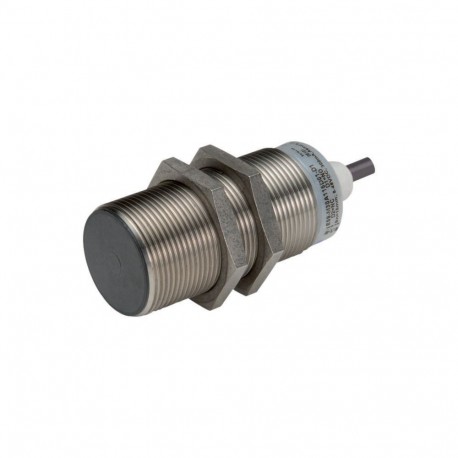

EATON - MOELLER E59-M30A115C02-D2 E59-M30A115C02-D2 136222 Y7-136222 EATON ELECTRIC Proximity switch, inductive, 1 N/C, Sn 15mm, 4L, 6-48VDC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E59-M30A115C02-D2 136222 Y7-136222 EATON ELECTRIC Proximity switch, inductive, 1 N/C, Sn 15mm, 4L, 6-48VDC, ..

E59-M30A115C02-D2

136222

Y7-136222

EATON - MOELLER

1 Pcs.

Proximity switch, inductive, 1 N/C, Sn=15mm, 4L, 6-48VDC, NPN, PNP, M30, metal E59-M30A115C02-D2 Proximity switch, Inductive Sensors, Product range: iProx Series, Connection: 3-wire, Design (outer dimensions): M30 x 1.5 mm, Rated operational voltage: Ue= 6 - 48 V DC, Rated switching distance: Sn= 15 mm, Type of mounting: Flush, Switching type: NPN, PNP, 2 m connection cable, Contacts N/C = Normally closed: 1 NC, Material: Stainless steel, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2

Automation > Inductive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller E59-M30A115C02-D2 is a proximity switch, inductive utilized for contactless detection of metallic objects in automated manufacturing environments. Sensors of this type are widely integrated into industrial assembly lines and machinery to monitor positioning, count components, or verify limits without physical contact. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor (EF007094): 0 mm
  • Height of sensor (EF007283): 0 mm
  • Length of sensor (EF007334): 70 mm
  • Diameter sensor (EF007111): 30 mm
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Switching distance (EF003647): 15 mm
  • Suitable for safety functions (EF001597): No
  • Type of switch function (EF003963): Breaker contact
  • Type of switching output (EF003962): NPN
  • Type of electric connection (EF003961): Cable
  • Number of protected semiconductor outputs (EF003951): 0
  • Number of protected contact energized outputs (EF003952): 0
  • Type of actuation (EF006949): Metallic Target
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Cascadable (EF000507): No
  • Max. output current at protected output (EF004035): 0 mA

More info

▲
Proximity switch, inductive, 1 N/C, Sn=15mm, 4L, 6-48VDC, NPN, PNP, M30, metal
Proximity switch, Inductive Sensors, Product range: iProx Series, Connection: 3-wire, Design (outer dimensions): M30 x 1.5 mm, Rated operational voltage: Ue= 6 - 48 V DC, Rated switching distance: Sn= 15 mm, Type of mounting: Flush, Switching type: NPN, PNP, 2 m connection cable, Contacts N/C = Normally closed: 1 NC, Material: Stainless steel, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2

Delivery program

Basic function
Inductive Sensors
Product range
iProx Series
Connection
3-wire
Design (outer dimensions)
M30 x 1.5 mm
Rated operational voltage [Ue]
6 - 48 V DC
Rated switching distance [Sn]
15 mm
Type of mounting
Flush
Switching type
NPN
PNP
For connection of:
2 m connection cable
Contacts
N/C = Normally closed
1 NC
Material
Stainless steel
Degree of Protection
IP67, IP69

Technical data

General
Standards
IEC/EN 60947-5-2
Ambient temperature
-40 - +70
Mechanical shock resistance
30
Shock duration 11 ms g
Degree of Protection
IP67, IP69
Characteristics
Rated switching distanceRated switching distance [Sn]
15 mm
Repetition accuracy of Sn
1 %
Temperature drift of Sn
10 %
Switching hysteresis of Sn
15 %
Rated operational voltage [Ue]
6 - 48 V DC
Maximum load current [Ie]
< 300 mA
Operating current in the switched state at 24 V DC [Ib]
15 mA
Voltage drop at Ie[Ud]
2.5 V
Switching Frequency
240 Hz
Min. load current [Ie]
1 mA
Residual current through the load in the blocked state at 230 V AC and 24 V DC [Ir]
0.15 mA
Switching state display
Red LED
Operating voltage display
Green LED
Protective functions
Short-circuit protective device
Protection against polarity reversal
Protection against wire breakage
Connection
3-wire
ContactsN/C = Normally closed
1 NC
StyleDesign (outer dimensions)
M30 x 1.5 mm
For connection of:
2 m connection cable
Material
Stainless steel

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-40 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Sensors (EG000026) / Inductive proximity switch (EC002714)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Proximity switch / Inductive proximity switch ([email protected] [AGZ376015])
Width sensor
0 mm
Height of sensor
0 mm
Length of sensor
70 mm
Diameter sensor
30 mm
Mechanical mounting condition for sensor
Concise
Switching distance
15 mm
Suitable for safety functions
No
Type of switch function
Breaker contact
Type of switching output
PNP/NPN
Type of electric connection
Cable
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Metallic Target
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Other
Cascadable
No
Category according to EN 954-1
B
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Max. output current at protected output
0 mA
Supply voltage
6 - 48 V
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
6 - 48 V
Voltage type
DC
Switching frequency
240 Hz
With monitoring function downstream switching devices
No
Material housing
Metal
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Interference resistance to magnetic fields

Approvals

Product Standards
UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking
UL File No.
E166051
UL Category Control No.
NRKH, NRKH7
CSA File No.
UL report applies to both Canada and US
CSA Class No.
–
North America Certification
UL listed, certified by UL for use in Canada
Max. Voltage Rating
48 V DC
Degree of Protection
IEC: IP67, IP69K; UL/CSA Type: 4, 4x, 6, 6P, 12, 13

Dimensions
