View larger

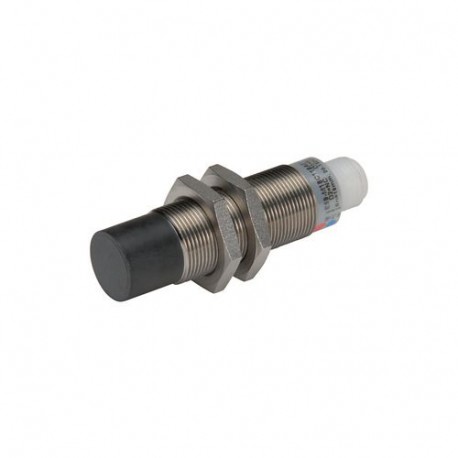

E59-M18C116D01-D1 136219 Y7-136219 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 18mm, 4L, 6-48VDC, N..
E59-M18C116D01-D1
136219
Y7-136219
EATON - MOELLER
1 Pcs.
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Eaton Moeller E59-M18C116D01-D1 proximity switch, inductive, 1N/O, Sn 18mm, 4L, 6-48VDC, N.. is utilized in automated machinery for the reliable, non-contact detection of metal components. Engineers integrate these components into industrial automation circuits to monitor movement, count items, and verify mechanical positioning without physical contact.
Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor: 0 mm
- Height of sensor: 0 mm
- Length of sensor: 69 mm
- Diameter sensor: 18 mm
- Mechanical mounting condition for sensor: Not flat
- Switching distance: 18 mm
- Suitable for safety functions: No
- Type of switch function: Normally open contact
- Type of switching output: NPN
- Type of electric connection: Plug-in connection
- Number of protected semiconductor outputs: 0
- Number of protected contact energized outputs: 0
- Type of actuation: Metallic Target
- Construction type housing: Cylinder, screw-thread
- Cascadable: No
- Max. output current at protected output: 0 mA
More info
▲General specifications
UL Category Control No.: NRKH, NRKH7
CE
IEC/EN 60947-5-2
CSA-C22.2 No. 14
UL File No.: E166051
UL
UL 508
Certified by UL for use in Canada
Product specifications
Short-circuit protection
Protection against wire breakage
3-wire
IP69
NEMA 4X, 6, 13
Status indication of Switching state: Red LED
