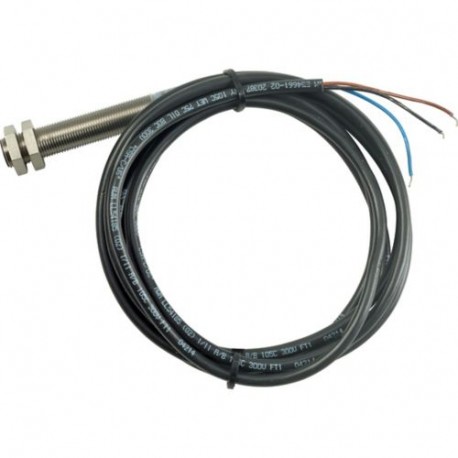

E59-M12A105C02-D2 136206 Y7-136206 EATON ELECTRIC Proximity switch, inductive, 1 N/C, Sn 4mm, 4L, 6-48VDC, N..
E59-M12A105C02-D2
136206
Y7-136206
EATON - MOELLER
1 Pcs.
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller E59-M12A105C02-D2 proximity switch uses inductive technology to sense the presence of metal components within complex industrial processes. Industrial automation systems rely on these parts for continuous monitoring, sorting, and cycle verification. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 0 mm
- Height of sensor (EF007283): 0 mm
- Length of sensor (EF007334): 62 mm
- Diameter sensor (EF007111): 12 mm
- Mechanical mounting condition for sensor (EF004041): Concise
- Switching distance (EF003647): 4 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Breaker contact
- Type of switching output (EF003962): PNP/NPN
- Type of electric connection (EF003961): Cable
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Type of actuation (EF006949): Metallic Target
- Construction type housing (EF004008): Cylinder, screw-thread
- Cascadable (EF000507): No
- Max. output current at protected output (EF004035): 0 mA
More info
▲General specifications
UL
CSA File No.: UL report applies to both US and Canada
UL 508
CE
Certified by UL for use in Canada
CSA-C22.2 No. 14
UL Category Control No.: NRKH, NRKH7
UL File No.: E166051
Product specifications
Protection against wire breakage
Protection against polarity reversal
3-wire
IP69
NEMA 4X, 6, 13
Status indication of Operating voltage: Green LED
