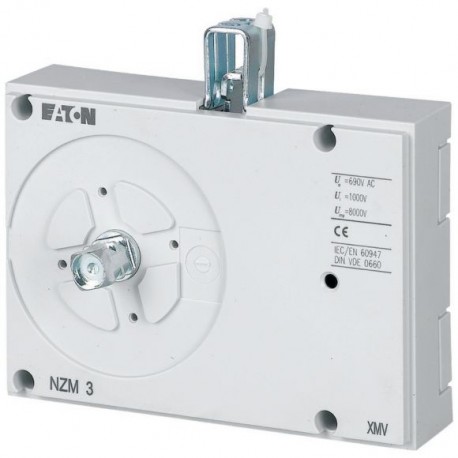

EATON - MOELLER NZM4-XMV NZM4-XMV 281584 Y7-281584 EATON ELECTRIC Interlock, mechanical, size 4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NZM4-XMV 281584 Y7-281584 EATON ELECTRIC Interlock, mechanical, size 4

NZM4-XMV

281584

Y7-281584

EATON - MOELLER

1 Pcs.

Interlock, mechanical, size 4 NZM4-XMV Eaton Moeller series NZM - Molded Case Circuit Breaker. Interlock, mechanical, size 4 Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: allows interlocking of 2, 3 or up to 4 switches, including different construction sized switches, between digital inputs.for every switch an interlocking module NZM…-XMV and a rotary handle on switch NZM…-XDV or a door coupling rotary handle NZM…-XTVD and Bowden cables are required . Cannot be combined with UL/CSA door coupling rotary handles NZM…-XTV…-NA or paralleling mechanisms, side wall operators and remote operator as well as insulating surrounds. Can be used for: NZM4(-4) , N(N/O)4(-4)

Automation > Mechanic interlock for switch
Circuit Breakers NZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller series NZM mounting accessory
Catalog Number
281584
Model Code
NZM4-XMV
EAN
4015082815844
Product Length/Depth
140 mm
Product Height
55 mm
Product Width
125 mm
Product Weight
0.597 kg
Compliances
UL/CSA
IEC
RoHS conform
Certifications
UL489
UL (File No. E140305)
CSA (File No. 22086)
CSA certified
UL (Category Control Number DIHS)
CE marking
UL listed
CSA (Class No. 1437-01)
IEC60947
CSA-C22.2 No. 5-09

Product specifications

Type
Accessory. Mechanical interlock
Special features
Allows interlocking of 2, 3 or 4 switches, including different construction sized switches, with NZM-XBZ... bowden cables.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM4
Used with
N4
NZM4
NZM4-NA
N4-4
NS4
NZM4-4
N(S)4(-4)
NZM4(-4)
Accessory/spare part type
Other

ETIM for 281584 Low-voltage industrial controls and switchgear (EC001044)
Feature Name Feature Value
Auxiliary contacts, extendable (EF001450) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
