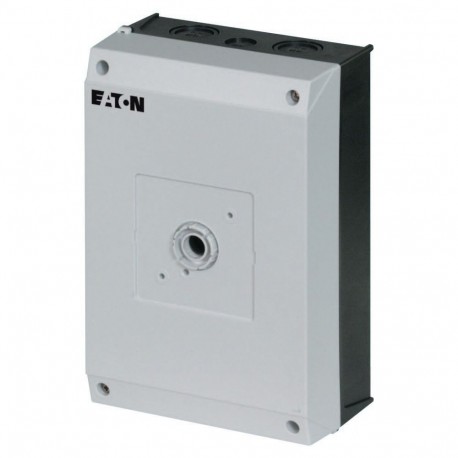

EATON - MOELLER CI-K4-T5B-2 CI-K4-T5B-2 207439 Y7-207439 EATON ELECTRIC Insulated enclosure, HxWxD 240x160x125mm, for T5B-2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CI-K4-T5B-2 207439 Y7-207439 EATON ELECTRIC Insulated enclosure, HxWxD 240x160x125mm, for T5B-2

CI-K4-T5B-2

207439

Y7-207439

EATON - MOELLER

1 Pcs.

Insulated enclosure, HxWxD=240x160x125mm, for T5B-2 CI-K4-T5B-2 Eaton Moeller® series CI-K Insulated enclosure, HxWxD=240x160x125mm, for T5B-2 Small enclosure, degree of protection IP65, glass-fiber reinforced polycarbonate, enclosure base RAL 9005, black/operator only RAL 7035, light gray, metric cable entry knockouts top, bottom and in the back plate, hard metric cable entry knockouts, control cable entry, indicator light L-. can be mounted in base knock-out M20/M25, for T5-../Z switch, 1-2 contact units

Automation > Empty enclosure for switchgear
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for demanding operational settings, the Eaton Moeller CI-K4-T5B-2 insulated enclosure provides secure containment and environmental shielding for heavy-duty switches and control components. Industrial facilities use protective enclosures to prevent dust, debris, and liquids from compromising critical electrical hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing material (EF001596): Plastic
  • Width (EF000008): 160 mm
  • Height (EF000040): 125 mm
  • Depth (EF000049): 240 mm
  • With transparent cover (EF001094): No
  • Suitable for emergency stop (EF001433): No
  • Model (EF000010): Surface mounting
  • Degree of protection (IP) (EF005474): IP65
  • Degree of protection (NEMA) (EF011959): 12

More info

▲

General specifications

Product Name
Eaton Moeller® series CI-K Insulated enclosure
Catalog Number
207439
Model Code
CI-K4-T5B-2
EAN
4015082074395
Product Length/Depth
240 mm
Product Height
125 mm
Product Width
160 mm
Product Weight
0.65 kg
Certifications
CE
UL Category Control No.: MITW2
CSA-C22.2 No. 94
IEC/EN 60947-3
CSA Class No.: 3211-07
UL
UL 508
CSA-C22.2 No. 14-05
CSA File No.: 012528
UL File No.: E54120
CSA
Catalog Notes
1 contact unit = 2 contacts

Product specifications

Type
Insulated enclosure
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Metric knockouts
Additional terminal
Used with
T5B-…/Z
with an additional PE clamp
Enclosure material
Plastic
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
26 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Degree of protection
IP65
NEMA 12
Model
Surface mounting
Radiated heat dissipation with separate mounting
26 W (at an ambient temperature of 20 °C)
