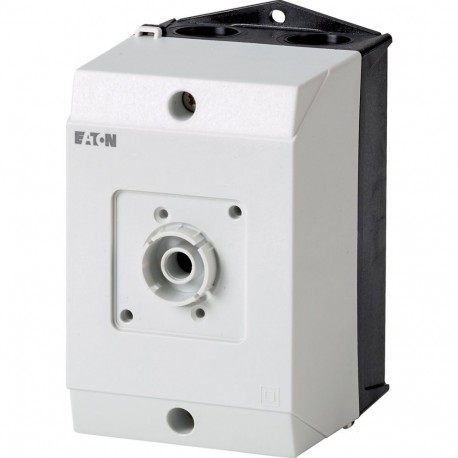

EATON - MOELLER CI-K1-T0-4 CI-K1-T0-4 207436 Y7-207436 EATON ELECTRIC Insulated enclosure, HxWxD 120x80x95mm, for T0-4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CI-K1-T0-4 207436 Y7-207436 EATON ELECTRIC Insulated enclosure, HxWxD 120x80x95mm, for T0-4

CI-K1-T0-4

207436

Y7-207436

EATON - MOELLER

1 Pcs.

Insulated enclosure, HxWxD=120x80x95mm, for T0-4 CI-K1-T0-4 Eaton Moeller® series CI-K Insulated enclosure, HxWxD=120x80x95mm, for T0-4 CI-K1-T0-4 Small enclosure, degree of protection IP65, glass-fiber reinforced polycarbonate, enclosure base RAL 9005, black/operator only RAL 7035, light gray, metric cable entry knockouts top, bottom and in the back plate, push-through cable entry diaphragm, 2 protective caps to protect the push-through membrane, indicator light L-. can be mounted in base knock-out M20/M25, for T0-../XZ switch, 3-4 contact units

Automation > Empty enclosure for switchgear
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series CI-K Insulated enclosure
Catalog Number
207436
Model Code
CI-K1-T0-4
EAN
4015082074364
Product Length/Depth
137 mm
Product Height
99 mm
Product Width
80 mm
Product Weight
0.205 kg
Compliances
CE

Product specifications

Type
Insulated enclosure
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Push-through cable entry diaphragm
Additional terminal
Used with
with an additional PE clamp
Enclosure material
Plastic
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
10 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Degree of protection
IP65
NEMA 12
Model
Surface mounting
Radiated heat dissipation with separate mounting
10 W (at an ambient temperature of 20 °C)

ETIM for 207436 Low-voltage industrial controls and switchgear (EC000712)
Feature Name Feature Value
Housing material (EF001596) Plastic
Width (EF000008) 80 mm
Height (EF000040) 99 mm
Depth (EF000049) 137 mm
With transparent cover (EF001094) No
Suitable for emergency stop (EF001433) No
Model (EF000010) Surface mounting
Degree of protection (IP) (EF005474) IP65
Degree of protection (NEMA) (EF011959) 12
