> EATON - MOELLER > Disconnectors and Cam Switches > 013423

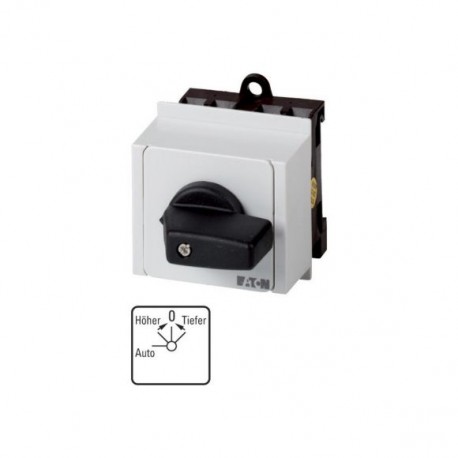

EATON - MOELLER T0-3-8152/IVS T0-3-8152/IVS 013423 Y7-13423 EATON ELECTRIC Reversing switches, Contacts: 6, 20 A, front plate: Aus-Höher 0.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8152/IVS 013423 Y7-13423 EATON ELECTRIC Reversing switches, Contacts: 6, 20 A, front plate: Aus-Höher 0..

T0-3-8152/IVS

013423

Y7-13423

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 6, 20 A, front plate: Aus-Höher>0 Inverter switch 6 poles 20 A Indicator plate: Eaton Moeller® series T0 Reversing switches, T0, 20 A, service distribution board mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, Aus-Höher>0

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Reversing switch
Catalog Number
013423
Model Code
T0-3-8152/IVS
EAN
4015080134237
Product Length/Depth
101 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.155 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
VDE 0660
CE
CSA-C22.2 No. 94
UL Category Control No.: NLRV
CSA
CSA Class No.: 3211-05
IEC/EN 60204
IEC/EN 60947-3
UL
CSA File No.: 012528
UL 60947-4-1
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
