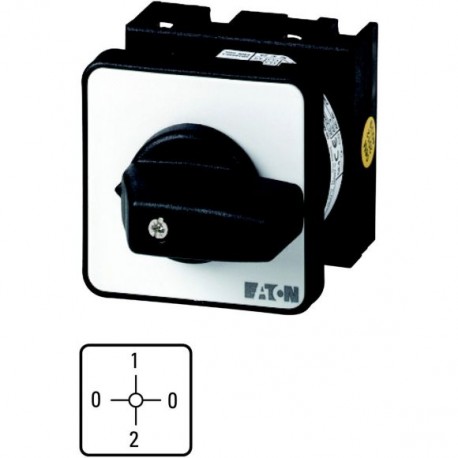

EATON - MOELLER T0-3-8030/E T0-3-8030/E 013401 Y7-13401 EATON ELECTRIC Voltage current measuring switch, Contacts: 6, 20 A, 2 converters.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8030/E 013401 Y7-13401 EATON ELECTRIC Voltage current measuring switch, Contacts: 6, 20 A, 2 converters..

T0-3-8030/E

013401

Y7-13401

EATON - MOELLER

1 Pcs.

Voltage current measuring switch, Contacts: 6, 20 A, 2 converters, front plate: 0-1-0-2, 90 °, maintained, flush mounting Voltage and current measuring switch 6 poles 20 A 2 Eaton Moeller® series T0 Voltage current measuring switch, T0, 20 A, flush mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, With 0 (Off) position, 0-1-0-2, Design number 8030 Cam switch according to IEC/EN60947, size T0, installation form, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, center mounting, rear mounting IVS service distribution board mounting.

Automation > Voltmeter selector switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Voltage current measuring switch
Catalog Number
013401
Model Code
T0-3-8030/E
EAN
4015080134015
Product Length/Depth
95 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.121 kg
Certifications
UL
IEC/EN 60947-3
CSA File No.: 012528
VDE 0660
CSA
CE
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL File No.: E36332
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 013401 Low-voltage industrial controls and switchgear (EC000911)
Feature Name Feature Value
Measurement between phases possible (EF001145) Yes
Measurement between phase and neutral conductor possible (EF001144) Yes
With zero (off) position (EF001416) Yes
Device construction (EF008240) Front installation
Modular version (EF001126) No
With control element (EF001538) Yes
Degree of protection (IP) (EF005474) IP65
Degree of protection (NEMA) (EF011959) 12
