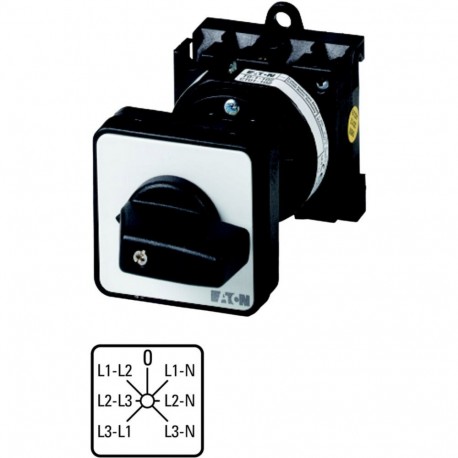

EATON - MOELLER T0-3-8007/Z T0-3-8007/Z 015132 Y7-15132 EATON ELECTRIC Voltmeter selector switches, Contacts: 6, 20 A, 3 x phase-phase, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8007/Z 015132 Y7-15132 EATON ELECTRIC Voltmeter selector switches, Contacts: 6, 20 A, 3 x phase-phase, ..

T0-3-8007/Z

015132

Y7-15132

EATON - MOELLER

1 Pcs.

Voltmeter selector switches, Contacts: 6, 20 A, 3 x phase-phase, 3 x phase-N, front plate: Phase/Phase-0-Phase/N, 45 °, maintained, rear mounting Voltmeter Selector Switch 6 poles 20 A 3 x Phase-Phase 3 x Eaton Moeller® series T0 Voltmeter selector switches, T0, 20 A, rear mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, Phase/Phase-0-Phase/N, Design number 8007 Cam switch according to IEC/EN60947, size T0, rear mounting form, snap screw-floor fastener, coupling drive for door or cover, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, center mounting, rear mounting IVS service distribution board mounting.

Automation > Voltmeter selector switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for intermediate mounting inside electrical enclosures, the Eaton Moeller T0-3-8007/Z acts as a voltmeter selector switch for comprehensive power monitoring. These devices allow technicians to safely cycle through various phase-to-phase and phase-to-neutral measurements on a single indicator. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Measurement between phases possible (EF001145): Yes
  • With zero (off) position (EF001416): Yes
  • Device construction (EF008240): Intermediate mounting
  • Modular version (EF001126): No
  • With control element (EF001538): Yes
  • Degree of protection (IP) (EF005474): IP65
  • Degree of protection (NEMA) (EF011959): 12

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Voltmeter selector switch
Catalog Number
015132
Model Code
T0-3-8007/Z
EAN
4015080151326
Product Length/Depth
137 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.163 kg
Certifications
CSA Class No.: 3211-05
UL Category Control No.: NLRV
UL File No.: E36332
IEC/EN 60204
VDE 0660
IEC/EN 60947
CSA-C22.2 No. 94
CE
UL 60947-4-1
CSA File No.: 012528
UL
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
