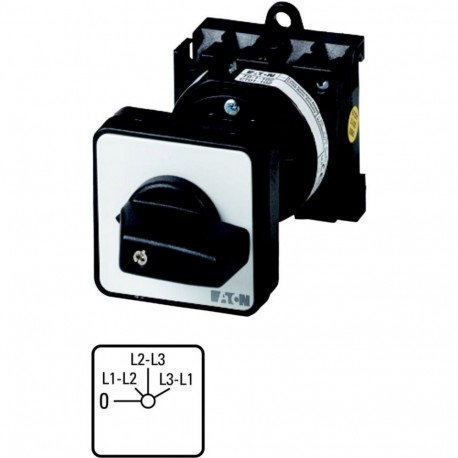

EATON - MOELLER T0-2-15920/Z T0-2-15920/Z 048353 Y7-48353 EATON ELECTRIC Voltmeter selector switches, Contacts: 4, 20 A, 3 x phase-phase,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15920/Z 048353 Y7-48353 EATON ELECTRIC Voltmeter selector switches, Contacts: 4, 20 A, 3 x phase-phase,..

T0-2-15920/Z

048353

Y7-48353

EATON - MOELLER

1 Pcs.

Voltmeter selector switches, Contacts: 4, 20 A, 3 x phase-phase, front plate: 0-Phase/Phase, 45 °, maintained, rear mounting Voltmeter selector switch; 4 poles; 20 A; 3 x Phase-Phase; Plaque Eaton Moeller® series T0 Voltmeter selector switches, T0, 20 A, rear mounting, 2 contact unit(s), Contacts: 4, 45 °, maintained, With 0 (Off) position, 0-Phase/Phase, Design number 15920 Cam switch according to IEC/EN60947, size T0, rear mounting form, snap screw-floor fastener, coupling drive for door or cover, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, center mounting, rear mounting IVS service distribution board mounting.

Automation > Voltmeter selector switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Intermediate mounting configurations like the Eaton Moeller T0-2-15920/Z function as reliable voltmeter selector switches inside electrical enclosures and distribution boards. These manual interface components allow technicians to cycle through phase voltages efficiently, ensuring accurate readings on a central panel indicator during routine electrical maintenance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Measurement between phases possible (EF001145): Yes
  • With zero (off) position (EF001416): Yes
  • Device construction (EF008240): Intermediate mounting
  • Modular version (EF001126): No
  • With control element (EF001538): Yes
  • Degree of protection (IP) (EF005474): IP65
  • Degree of protection (NEMA) (EF011959): 12

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Voltmeter selector switch
Catalog Number
048353
Model Code
T0-2-15920/Z
EAN
4015080483533
Product Length/Depth
128 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.134 kg
Certifications
IEC/EN 60204
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 94
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC/EN 60947-3
IEC/EN 60947
UL 60947-4-1
CE
UL
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
