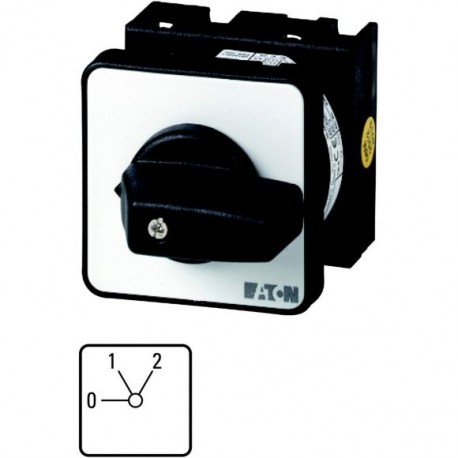

T0-1-91/E 072082 Y7-72082 EATON ELECTRIC step switch for heating, Contacts: 2, 20 A, front plate: 0-2, 60 °,..
T0-1-91/E
072082
Y7-72082
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller step switch for heating applications, part number T0-1-91/E, allows operators to manually adjust thermal output stages in industrial heating systems and processing equipment. Multi-step switches enable precise stepwise control over resistive load elements.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 1
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
UL File No.: E36332
CE
IEC/EN 60947
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA File No.: 012528
UL Category Control No.: NLRV
UL
UL 60947-4-1
CSA
VDE 0660
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
