View larger
Images are for illustrative purposes only. Please refer to data sheet for details

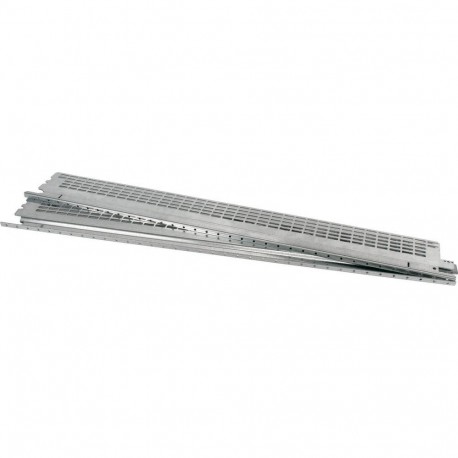

BPZ-MSW-15 293410 EATON ELECTRIC Installation side wall
BPZ-MSW-15
293410
EATON - MOELLER
1 Pcs.
Installation side wall
Mounting plate for fixing on Profi+ and XVTL-BP.F mounting frames or on SVTL-VP vertical profile
Automation > Side/back panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Delivery program
Mounting type | Flush mounted | ||
Material | Sheet steel | ||
Surface finish | Galvanized | ||
Mounting position | Vertical | ||
Height | mm | 1450 | |
Suitable for height | mm | 1450 | |
Fixing | without snap element |
Technical data ETIM 7.0
| Cabinet enclosures (EG000011) / Side/back panel (switchgear cabinet) (EC002524) | |||
| Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Side/back panel (electrical cabinet) ([email protected] [AKE423014]) | |||
Suitable as side panel | Yes | ||
Suitable as rear panel | No | ||
Modular spacing | mm | 25 | |
Suitable for enclosure building width | mm | 0 | |
Suitable for enclosure building depth | mm | 0 | |
Width | mm | 13 | |
Height | mm | 1430 | |
Material | Steel | ||
Surface finishing | Galvanized | ||
Colour | Stainless steel | ||
RAL-number | 0 | ||
With cable entry | No | ||
Number of height units | 53 | ||
With lock | No | ||
| Feature Name | Feature Value |
|---|---|
| Suitable as side panel (EF008287) | Yes |
| Suitable as rear panel (EF008288) | No |
| Modular spacing (EF000394) | 25 mm |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 115 mm |
| Height (EF000040) | 15 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 53 |
| With lock (EF006306) | No |
