View larger
Images are for illustrative purposes only. Please refer to data sheet for details

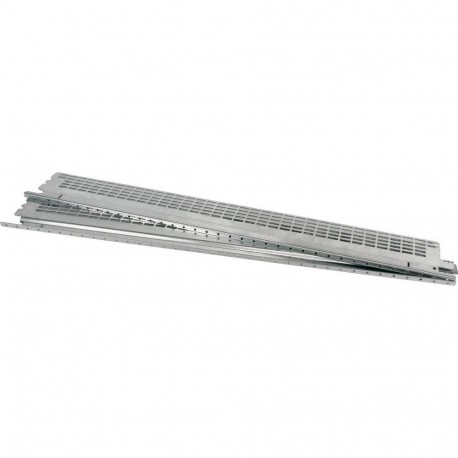

BPZ-MSW-10 293408 0002465701 EATON ELECTRIC Installation side wall
BPZ-MSW-10
293408
Y7-293408
EATON - MOELLER
1 Pcs.
Installation side wall
MSW installation installation element
Mounting plate for fixing on Profi+ and XVTL-BP.F mounting frames or on SVTL-VP vertical profile
Automation > Side/back panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲EL-Nummer (Norway)
2465701
Installation side wall
Mounting plate for fixing on Profi+ and XVTL-BP.F mounting frames or on SVTL-VP vertical profile
Delivery program
Mounting type
Flush mounted
Material
Sheet steel
Surface finish
Galvanized
Mounting position
Vertical
Height
950 mm
Suitable for height
950 mm
Fixing
without snap element
Technical data ETIM 7.0
Cabinet enclosures (EG000011) / Side/back panel (switchgear cabinet) (EC002524)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Side/back panel (electrical cabinet) ([email protected] [AKE423014])
Suitable as side panel
Yes
Suitable as rear panel
No
Modular spacing
25 mm
Suitable for enclosure building width
0 mm
Suitable for enclosure building depth
0 mm
Width
13 mm
Height
930 mm
Material
Steel
Surface finishing
Galvanized
Colour
Stainless steel
RAL-number
0
With cable entry
No
Number of height units
33
With lock
No
| Feature Name | Feature Value |
|---|---|
| Suitable as side panel (EF008287) | Yes |
| Suitable as rear panel (EF008288) | No |
| Modular spacing (EF000394) | 25 mm |
| Width (EF000008) | 15 mm |
| Height (EF000040) | 940 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 33 |
| With lock (EF006306) | No |
