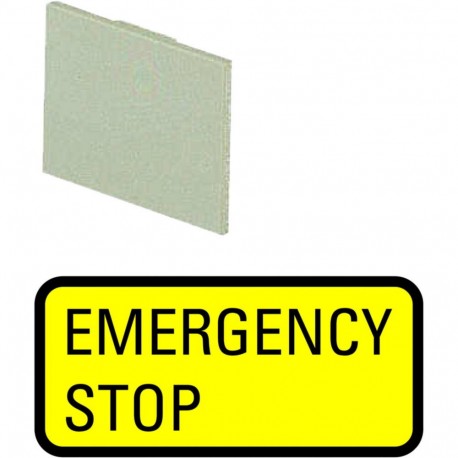

EATON - MOELLER 299SQ25 299SQ25 063199 Y7-63199 EATON ELECTRIC Insert label, yellow, emergency-Stop View larger
Images are for illustrative purposes only. Please refer to data sheet for details

299SQ25 063199 Y7-63199 EATON ELECTRIC Insert label, yellow, emergency-Stop

299SQ25

063199

Y7-63199

EATON - MOELLER

20 Pcs.

Insert label, yellow, emergency-Stop Inscription Indicator Label: Emergency-Stop Yellow Insert label, Product range: Accessories, Single unit, Connection to SmartWire-DT: no

Automation > Text plate for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Insert label, yellow, emergency-Stop
Insert label, Product range: Accessories, Single unit, Connection to SmartWire-DT: no

General specifications
Product name
Eaton Moeller® series RMQ16 Accessory Insert label
Part no.
299SQ25
EAN
4015080631996
Product Length/Depth
1 millimetre
Product height
10 millimetre
Product width
22 millimetre
Product weight
0.002 kilogram
Certifications
UL/CSA certification not required
Product Tradename
RMQ16
Product Type
Accessory
Product Sub Type
Insert label
Features & Functions
Color
Yellow
Inscription
EMERGENCY STOP
Language
English
Shape
Rectangular
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Communication
Connection to SmartWire-DT
No
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Text plate for command devices (EC000624)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Identification plate for command devices (ecl@ss13-27-37-12-25 [AKF043019])
Literal imprint
Emergency Stop
Language of the imprint
English
Imprint ISO symbols
None
Colour
Yellow
Shape
Rectangular
Width
22 mm
Height
10 mm
Outer diameter
0 mm

ETIM for 063199 Low-voltage industrial controls and switchgear (EC000624)
Feature Name Feature Value
Literal imprint (EF015918) Emergency Stop
Language of the imprint (EF015922) English
Imprint ISO symbols (EF006094) None
Colour (EF000007) Yellow
Shape (EF000051) Rectangular
Width (EF000008) 22 mm
Height (EF000040) 10 mm
Outer diameter (EF000015) 0 mm
