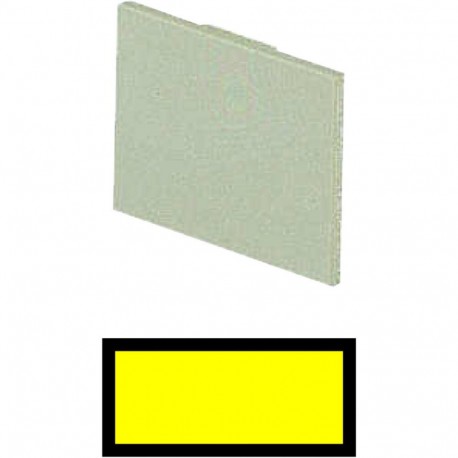

EATON - MOELLER 05SQ25 05SQ25 063201 Y7-63201 EATON ELECTRIC Insert label, yellow, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

05SQ25 063201 Y7-63201 EATON ELECTRIC Insert label, yellow, blank

05SQ25

063201

Y7-63201

EATON - MOELLER

20 Pcs.

Insert label, yellow, blank Yellow Indicator Label for RMQ16 Label Holder Eaton Moeller® series RMQ16 Insert label, yellow, blank Insert label, Product range: Accessories, Single unit, Name: Blank, yellow, not for engraving, Connection to SmartWire-DT: no

Automation > Text plate for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series RMQ16 Accessory Insert label
Catalog Number
063201
Model Code
05SQ25
EAN
4015080632016
Product Length/Depth
1 mm
Product Height
10 mm
Product Width
22 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Features & Functions

Color
Yellow
Inscription
None
Shape
Rectangular

General

Product Category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 063201 Low-voltage industrial controls and switchgear (EC000624)
Feature Name Feature Value
Literal imprint (EF015918) None
Language of the imprint (EF015922) Other
Imprint ISO symbols (EF006094) None
Colour (EF000007) Yellow
Shape (EF000051) Rectangular
Width (EF000008) 22 mm
Height (EF000040) 10 mm
Outer diameter (EF000015) 0 mm
