M22-XST 216480 Y7-216480 EATON ELECTRIC Insert label, 18x27, aluminum, blank
M22-XST
M22-XST
Y7-216480
EATON - MOELLER
1 unit
Automation > Text plate for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

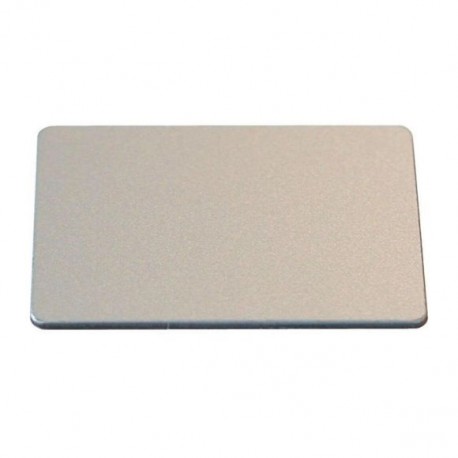

The Eaton Moeller M22-XST is a blank silver aluminum insert label built for integration into modular control and signaling device holders. Technicians use blank plates of this style for custom engraving or field labeling on industrial switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour: Silver
- Shape: Rectangular
- Width: 27 mm
- Height: 18 mm
- Outer diameter: 0 mm
More info
▲General specifications
| Product Name | Eaton Moeller® series M22 insert label |
| Catalog Number | 216480 |
| Model Code | M22-XST |
| EAN | 4015082164805 |
| Product Length/Depth | 1 mm |
| Product Height | 18 mm |
| Product Width | 27 mm |
| Product Weight | 0.4 g |
| Certifications | UL/CSA certification not required |
Product specifications
| Product Category | Accessories |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Connection to SmartWire-DT | No |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Outside diameter | 0 mm |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Color | Silver |
| Shape | Rectangular |
| Material | Aluminum Acrylnitril-Butadien-Styrol-Copolymer (ABS) with aluminium hot stamping foil |
| Language | Other |
| Inscription | None |
| Imprint ISO symbols | None |
