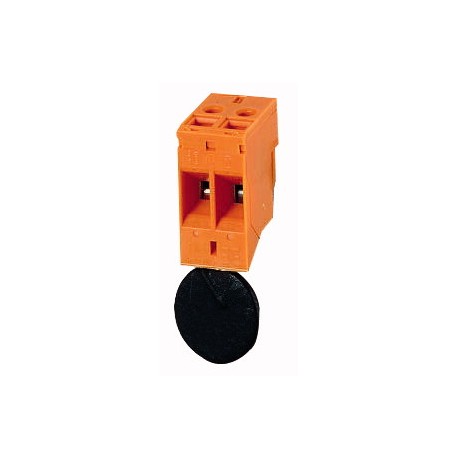

EEB3 226106 EATON ELECTRIC Inrush current limiter, 1p, Ie 3A

EEB3

226106

EATON - MOELLER

1 Pcs.

Inrush current limiter, 1p, Ie=3A Start-up current limiter; Monophasic; Ie=3 A Inrush current limiter for STI-series single-phase transformers, STZ, ET primary current In 3.0 A

Automation > Current limiter
Transformers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Inrush current limiter, 1p, Ie=3A
Inrush current limiter for STI-series single-phase transformers, STZ, ET primary current In 3.0 A

Delivery program

Product range
Accessories
Accessories
Inrush current limiters
Primary current [In]
3 A
For use with
STI
STZ
Cu factor
0,00 kg
Notes

Primary current: from the transformer rating plate or by calculation

Single‐phase: IN= SN/(UNprimx η)

Three‐phase: IN= SN/(√3 UNprimx η)

SN= VA rating of the transformer

UNprim= rated transformer primary voltage

η = efficiency

Design verification as per IEC/EN 61439

Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
2.9 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+40 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Current limiter (EC000239)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Current limiter ([email protected] [AKF014013])
Max. apparent power
0 VA
Mounting method
Other
Conditioned rated short-circuit current Iq
0 kA
Rated permanent current Iu
3 A
Short-circuit current limiter
No

ETIM for 226106 Low-voltage industrial controls and switchgear (EC000239)
Feature Name Feature Value
Max. apparent power (EF008258) 0 VA
Mounting method (EF000003) Direct attachment
Conditioned rated short-circuit current Iq (EF001444) 0 kA
Rated permanent current Iu (EF001389) 3 A
Short-circuit current limiter (EF007333) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
