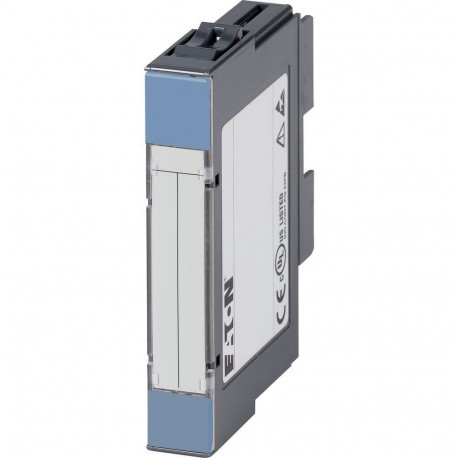

XN-2AI-THERMO-PI 140068 Y7-140068 EATON ELECTRIC Analog input card XI/ON, 24 V DC, 2AI (thermocouples type B..
XN-2AI-THERMO-PI
140068
Y7-140068
EATON - MOELLER
1 Pcs.
Automation > Fieldbus, decentr. periphery - analogue I/O module
Remote I / O Modules XION
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Analog input card XI/ON, 24 V DC, 2AI (thermocouples type B.. supplied by Eaton Moeller under part number XN-2AI-THERMO-PI 140068 conditions temperature measurements from high-range thermal probes for monitoring systems. Such cards protect industrial thermal processes by feeding accurate temperature metrics into controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Supply voltage AC 50 Hz (EF007532): 0 V
- Supply voltage AC 60 Hz (EF007533): 0 V
- Supply voltage DC (EF007534): 20.4 V
- Voltage type (supply voltage) (EF002991): DC
- Input, current (EF003204): No
- Input, voltage (EF003205): No
- Input, resistor (EF003206): No
- Input, resistance thermometer (EF003207): No
- Input, thermocouple (EF003208): Yes
- Input signal, configurable (EF003209): Yes
- Resolution of the analogue inputs (EF003575): 16 Bit
- Output, current (EF003212): No
- Output, voltage (EF003213): No
- Output signal configurable (EF003214): No
- Resolution of the analogue outputs (EF003577): 0 Bit
- Number of analogue inputs (EF001994): 2
More info
▲General specifications
IEC/EN 61000-6-4
UL report applies to both US and Canada
IEC/EN 61131-2
UL Recognized
UL Category Control No.: NRAQ, NRAQ7
UL 508
Certified by UL for use in Canada
CSA Class No.: 2252-01, 2252-81
CULus
IEC/EN 6113-2
CE
IEC/EN 61000-6-2
CSA-C22.2 No. 142
Features & Functions
Analog outputs configurable
Input, thermocouple
Input signal, configurable
Analog inputs configurable
General
45 mA, from module bus, Analog input modules
NEMA 1
XN-S4S-SBBS-CJ
Ambient conditions, mechanical
Continuous according to IEC/EN 60068-2-29
Climatic environmental conditions
Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation)
Electro magnetic compatibility
30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3)
Electrical rating
Communication
Voltage measurement: 70 ms, per channel
Input/Output
12-bit full range left-justified
