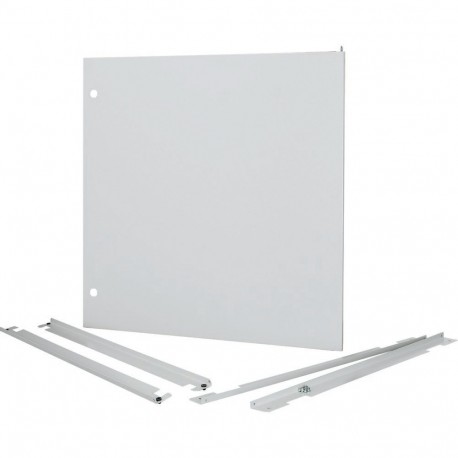

EATON - MOELLER DI-3030-CS DI-3030-CS 138662 EATON ELECTRIC Inner door, for HxW 300x300mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DI-3030-CS 138662 EATON ELECTRIC Inner door, for HxW 300x300mm

DI-3030-CS

138662

EATON - MOELLER

1 Pcs.

Inner door, for HxW=300x300mm Door for internal partitions, internal door for operator control and display elements, sheet steel, powder-spray painted RAL 7035, DAS-SET/...-CS depth-adjustment elements also necessary

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller DI-3030-CS inner door establishes a secondary internal barrier within industrial enclosures, allowing partitioned access to sub-assemblies. Inner doors are standard accessories in control cabinets used to shield operators from live parts while primary enclosure doors remain open.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Inner door
  • Version as glazed door (EF006966): No
  • Width (EF000008): 25 mm
  • Height (EF000040): 25 mm
  • Depth (EF000049): 25 mm
  • EMC-version (EF001062): No
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey

More info

▲

General specifications

Product Name
Eaton xEffect CS inner door
Catalog Number
138662
Model Code
DI-3030-CS
EAN
4015081354429
Product Length/Depth
25 mm
Product Height
25 mm
Product Width
25 mm
Product Weight
2 kg
Compliances
RoHS conform

Delivery program

Type
Model
Inner door
Accessory/spare part type
Doors for internal partitions
Color
Gray

Technical data - mechanical

Surface finishing
With powder coating
Powder coating
RAL 7035, light gray
Material
Steel
Steel plate
Degree of protection
Other
IP30

Additional information

Functions
Internal door for operator control and display elements
Special features
Depth adjustment elements for mounting plates required in addition
Used with
Enclosure width = 300 mm
Enclosure height = 300 mm
Accessory CS
Accessory interior fitting
