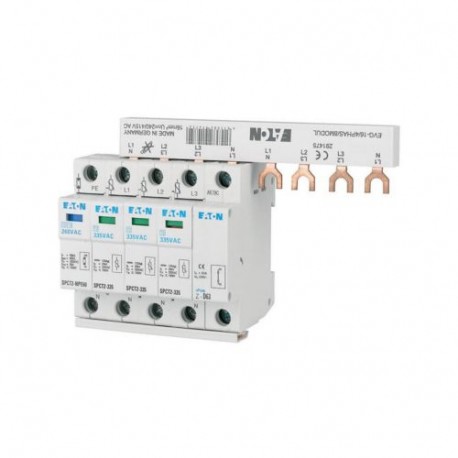

SPCT2-280-3+NPE/BB 167629 Y7-167629 EATON ELECTRIC Plug-in surge arresters, 3-phase+N/BB, 280VAC, 20 kA
SPCT2-280-3+NPE/BB
167629
Y7-167629
EATON - MOELLER
1 Pcs.
Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Plug-in surge arresters such as the Eaton Moeller SPCT2-280-3+NPE/BB provide essential protection for electrical grids by clamping unexpected voltage spikes before they reach sensitive loads. These components are commonly integrated into main distribution panels to protect industrial and commercial facilities from transient electrical disturbances.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- System configuration DC (EF009926): No
- System configuration IT (EF009927): Yes
- System configuration TN (EF009928): Yes
- System configuration TN-C (EF009929): No
- System configuration TN-C-S (EF009933): Yes
- System configuration TN-S (EF009930): Yes
- System configuration TT (EF009931): Yes
- System configuration other (EF009932): Yes
- Number of conductors (without earthing) (EF001148): 3
- Nominal discharge surge current (8/20) (EF004214): 20 kA
- Max. discharge surge current (8/20) (EF012274): 40 kA
- Nominal voltage AC (EF004220): 280 V
- Nominal voltage DC (EF004221): 0 V
- Max. continuous voltage AC (EF004198): 280 V
- Max. continuous voltage DC (EF004777): 0 V
- Max. PV-voltage (EF008795): 0 V
