EATON - MOELLER SPBT12-280-3+NPE/BB SPBT12-280-3+NPE/BB 158333 Y7-158333 EATON ELECTRIC Lightning current and surge arresters kit, TN-S/TT kit, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPBT12-280-3+NPE/BB 158333 Y7-158333 EATON ELECTRIC Lightning current and surge arresters kit, TN-S/TT kit, ..

SPBT12-280-3+NPE/BB

158333

Y7-158333

EATON - MOELLER

1 Pcs.

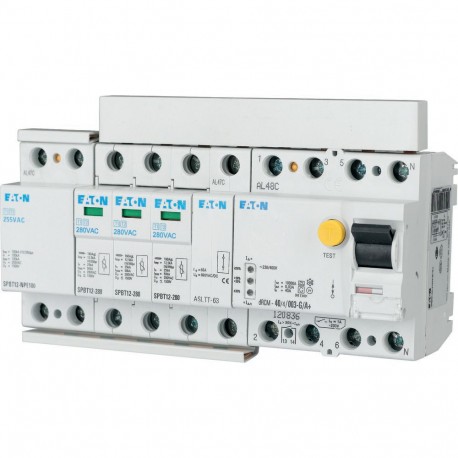

Lightning current and surge arresters kit, TN-S/TT kit, 3+1p SPBT12-280-3+NPE/BB Eaton Moeller series xPole - SPBT12 Surge Protection Device. Lightning current and surge arresters kit, TN-S/TT kit, 3+1p, BB For protecting consumer systems against transient overvoltages caused by direct and indirect lightning strikes and switching operations, use in accordance with IEC 60364-5-53 section 534, iI according to IEC 61643-1, SPD-type T1, T2 according to EN 61643-11, lightning protection classes III and IV as per IEC 62305, type without remote signaling

Automation > Combined arrester for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller SPBT12-280-3+NPE/BB lightning current and surge arresters kit offers comprehensive multi-pole protection for complex electrical distribution networks. Pre-engineered kits streamline the installation of heavy-duty surge suppression in industrial power panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration DC (EF009926): No
  • System configuration IT (EF009927): Yes
  • System configuration TN (EF009928): Yes
  • System configuration TN-C (EF009929): No
  • System configuration TN-C-S (EF009933): No
  • System configuration TN-S (EF009930): Yes
  • System configuration TT (EF009931): Yes
  • System configuration other (EF009932): Yes
  • Number of poles (EF001391): 4
  • Lightning impulse current (10/350 µs) (EF000421): 12.5 kA
  • Max. continuous voltage AC (EF004198): 280 V
  • Max. continuous voltage DC (EF004777): 0 V
  • Nominal voltage AC (EF004220): 280 V
  • Nominal voltage DC (EF004221): 0 V
  • Max. PV-voltage (EF008795): 0 V
  • Voltage protection level (EF003525): 0 kV

More info

▲

General specifications

Product Name
Eaton Moeller series xPole - SPBT12 Surge protection device
Catalog Number
158333
Model Code
SPBT12-280-3+NPE/BB
EAN
4015081549214
Product Length/Depth
123 mm
Product Height
69 mm
Product Width
176 mm
Product Weight
0.817 kg
Compliances
RoHS conform

Delivery program

Application
Number of poles
Four-pole
Type
Surge arrester

Technical data - electrical

Voltage protection level
0 KV
Voltage protection level (DC+ - DC-)
0 KV
Voltage protection level (DC+/DC- - PE)
0 KV
Voltage protection level (L-N)
1.5 KV
Voltage protection level (L-PE)
1.5 KV
Voltage protection level (N-PE)
1.5 KV
Nominal voltage at AC
280 V
Nominal voltage at DC
0 V
Continuous voltage at AC - max
280 V
Continuous voltage at DC - max
0 V
PV-voltage - max
0 V
Lightning impulse current (10/350 µs)
12.5 kA
Follow current extinguishing capability
0 kA
Signalling at the device
Optic
Specific energy (W/R)
2500 kJ/Ohm

Technical data - mechanical

Frame
6 modular spacing
Mounting method
DIN rail (top hat rail) 35 mm
Conductor cross section (flexible, fine-strand) - max
35 mm²
Conductor cross section (solid, solid-strand) - max
25 mm²
Degree of protection
IP20

Additional information

Features
Voltage switching spark gap technology
System configuration type
TN
TT
Other
TN-S
IT
Test class
Type 1 + 2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
