EATON - MOELLER SPBT12-280-3+NPE-AX SPBT12-280-3+NPE-AX 158335 Y7-158335 EATON ELECTRIC Lightning current and surge arresters kit, TN-S/TT kit, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPBT12-280-3+NPE-AX 158335 Y7-158335 EATON ELECTRIC Lightning current and surge arresters kit, TN-S/TT kit, ..

SPBT12-280-3+NPE-AX

158335

Y7-158335

EATON - MOELLER

1 Pcs.

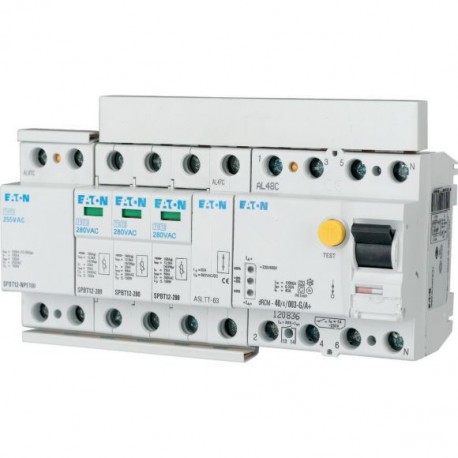

Lightning current and surge arresters kit, TN-S/TT kit, 3+1p SPBT12-280-3+NPE-AX Eaton Moeller series xPole - SPBT12 Surge Protection Device. Lightning current and surge arresters kit, TN-S/TT kit, 3+1p, AX For protecting consumer systems against transient overvoltages caused by direct and indirect lightning strikes and switching operations, use in accordance with IEC 60364-5-53 section 534, iI according to IEC 61643-1, SPD-type T1, T2 according to EN 61643-11, lightning protection classes III and IV as per IEC 62305, type with remote signaling

Automation > Combined arrester for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for comprehensive electrical defense, the SPBT12-280-3+NPE-AX 158335 Y7-158335 EATON ELECTRIC Lightning current and surge arresters kit operates as a multi-pole protection solution for complex power networks. These modular kits are generally positioned within main electrical switchboards to mitigate lightning currents and transient overvoltages effectively. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration DC (EF009926): No
  • System configuration IT (EF009927): Yes
  • System configuration TN (EF009928): Yes
  • System configuration TN-C (EF009929): No
  • System configuration TN-C-S (EF009933): No
  • System configuration TN-S (EF009930): Yes
  • System configuration TT (EF009931): Yes
  • System configuration other (EF009932): Yes
  • Number of poles (EF001391): 4
  • Lightning impulse current (10/350 µs) (EF000421): 12.5 kA
  • Max. continuous voltage AC (EF004198): 280 V
  • Max. continuous voltage DC (EF004777): 0 V
  • Nominal voltage AC (EF004220): 280 V
  • Nominal voltage DC (EF004221): 0 V
  • Max. PV-voltage (EF008795): 0 V
  • Voltage protection level (EF003525): 0 kV

More info

▲

General specifications

Product Name
Eaton Moeller series xPole - SPBT12 Surge protection device
Catalog Number
158335
Model Code
SPBT12-280-3+NPE-AX
EAN
4015081549238
Product Length/Depth
90 mm
Product Height
69 mm
Product Width
96.5 mm
Product Weight
0.708 kg
Compliances
RoHS conform

Delivery program

Application
Number of poles
Four-pole
Type
Surge arrester

Technical data - electrical

Voltage protection level
0 KV
Voltage protection level (DC+ - DC-)
0 KV
Voltage protection level (DC+/DC- - PE)
0 KV
Voltage protection level (L-N)
1.5 KV
Voltage protection level (L-PE)
1.5 KV
Voltage protection level (N-PE)
1.5 KV
Nominal voltage at AC
280 V
Nominal voltage at DC
0 V
Continuous voltage at AC - max
280 V
Continuous voltage at DC - max
0 V
PV-voltage - max
0 V
Lightning impulse current (10/350 µs)
12.5 kA
Follow current extinguishing capability
0 kA
Signalling at the device
Optic
Specific energy (W/R)
2500 kJ/Ohm

Technical data - mechanical

Frame
Other
Mounting method
DIN rail (top hat rail) 35 mm
Conductor cross section (flexible, fine-strand) - max
35 mm²
Conductor cross section (solid, solid-strand) - max
25 mm²
Degree of protection
IP20

Additional information

Features
Voltage switching spark gap technology
System configuration type
IT
Other
TN-S
TN
TT
Test class
Type 1 + 2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
