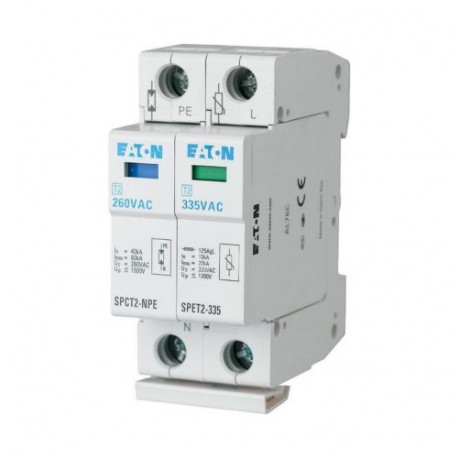

EATON - MOELLER SPET2-335/1+NPE SPET2-335/1+NPE 168701 Y7-168701 EATON ELECTRIC Surge arresters complete, 1pole+N, 335VAC, 4, 5 kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPET2-335/1+NPE 168701 Y7-168701 EATON ELECTRIC Surge arresters complete, 1pole+N, 335VAC, 4, 5 kA

SPET2-335/1+NPE

168701

Y7-168701

EATON - MOELLER

1 Pcs.

Surge arresters complete, 1pole+N, 335VAC, 4, 5 kA SPET2-335/1+NPE Surge arrester complete, 1-pole+N, 335VAC, 2x10kA For protecting consumer systems against transient overvoltages caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, can be bussed with all Xtra Combinations switchgear, use in accordance with IEC 60364-5-53 clause 534

Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller SPET2-335/1+NPE 168701 Y7-168701 is a complete surge arrester assembly engineered to limit transient overvoltages in electrical systems. Industrial installations rely on these components to protect machinery and sensitive electronics from the damaging effects of electrical surges and line disturbances.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration DC (EF009926): No
  • System configuration IT (EF009927): Yes
  • System configuration TN (EF009928): Yes
  • System configuration TN-C (EF009929): No
  • System configuration TN-C-S (EF009933): No
  • System configuration TN-S (EF009930): Yes
  • System configuration TT (EF009931): Yes
  • System configuration other (EF009932): Yes
  • Number of conductors (without earthing) (EF001148): 1
  • Nominal discharge surge current (8/20) (EF004214): 10 kA
  • Max. discharge surge current (8/20) (EF012274): 60 kA
  • Nominal voltage AC (EF004220): 335 V
  • Nominal voltage DC (EF004221): 0 V
  • Max. continuous voltage AC (EF004198): 335 V
  • Max. continuous voltage DC (EF004777): 0 V
  • Max. PV-voltage (EF008795): 0 V

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
168701
Model Code
SPET2-335/1+NPE
EAN
4015081651900
Product Length/Depth
90 mm
Product Height
69 mm
Product Width
52.5 mm
Product Weight
0.184 kg
Compliances
RoHS conform

Product specifications

Type
Surge arrester
Application
Open areasResidential buildingsUtility buildings
Features
Category type 2
Frame
2 modular spacing
Degree of protection
IP20
Mounting method
DIN rail (top hat rail) 35 mm
Voltage protection level (L-N)
0 KV
Voltage protection level (N-PE)
0 KV
Signalling at the device
Optic
System configuration type
Other
TT
TN-S
IT
TN
Conductor cross section (flexible, fine-strand) - max
0 mm²
Conductor cross section (flexible, fine-strand) - min
0 mm²
Conductor cross section (solid, solid-strand) - max
25 mm²
Conductor cross section (solid, solid-strand) - min
25 mm²
Continuous voltage at AC - max
335 V
Continuous voltage at DC - max
0 V
Discharge surge current (8/20) - max
60 kA
Nominal discharge surge current (8/20)
10 kA
Nominal voltage at AC
335 V
Nominal voltage at DC
0 V
Number of conductors without earthing
1
PV-voltage - max
0 V
Short-circuit breaking capacity (ISCCR)
0 kA
Voltage protection level
1.3 KV
Overcurrent protection device, parallel connection (fuse) - max
0 A
Overcurrent protection device, series connection (fuse) - max
100 A
Integrated short-circuit protection selective to fuse gG
0 A
