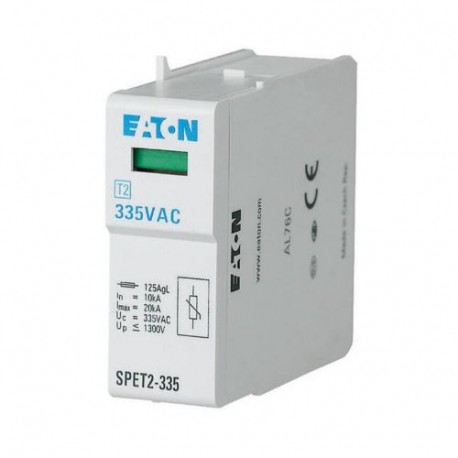

EATON - MOELLER SPET2-335 SPET2-335 168694 Y7-168694 EATON ELECTRIC Surge arrester plug-in unit, 335VAC, 4, 5 kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPET2-335 168694 Y7-168694 EATON ELECTRIC Surge arrester plug-in unit, 335VAC, 4, 5 kA

SPET2-335

168694

Y7-168694

EATON - MOELLER

1 Pcs.

Surge arrester plug-in unit, 335VAC, 4, 5 kA SPET2-335 For protecting consumer systems against transient overvoltages caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, can be bussed with all Xtra Combinations switchgear, use in accordance with IEC 60364-5-53 clause 534

Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The SPET2-335 168694 Y7-168694 EATON ELECTRIC Surge arrester plug-in unit, 335VAC, 4, 5 kA acts as a dedicated protective component to shield electrical systems from unexpected voltage transients. Such surge arresters are implemented in industrial switchgear installations to suppress electrical noise and high-energy pulses before they reach sensitive loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration DC (EF009926): No
  • System configuration IT (EF009927): No
  • System configuration TN (EF009928): No
  • System configuration TN-C (EF009929): No
  • System configuration TN-C-S (EF009933): No
  • System configuration TN-S (EF009930): No
  • System configuration TT (EF009931): No
  • System configuration other (EF009932): Yes
  • Number of conductors (without earthing) (EF001148): 0
  • Nominal discharge surge current (8/20) (EF004214): 10 kA
  • Max. discharge surge current (8/20) (EF012274): 20 kA
  • Nominal voltage AC (EF004220): 335 V
  • Nominal voltage DC (EF004221): 0 V
  • Max. continuous voltage AC (EF004198): 335 V
  • Max. continuous voltage DC (EF004777): 0 V
  • Max. PV-voltage (EF008795): 0 V

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
168694
Model Code
SPET2-335
EAN
4015081651832
Product Length/Depth
80 mm
Product Height
65 mm
Product Width
17.5 mm
Product Weight
0.033 kg
Compliances
RoHS conform

Product specifications

Type
Surge arrester
Application
Open areasResidential buildingsUtility buildings
Features
Category type 2
Frame
1 modular spacing
Degree of protection
IP20
Mounting method
On basic element
Voltage protection level (L-N)
0 KV
Voltage protection level (N-PE)
0 KV
Signalling at the device
Optic
System configuration type
Other
Conductor cross section (flexible, fine-strand) - max
0 mm²
Conductor cross section (flexible, fine-strand) - min
0 mm²
Conductor cross section (solid, solid-strand) - max
25 mm²
Conductor cross section (solid, solid-strand) - min
25 mm²
Continuous voltage at AC - max
335 V
Continuous voltage at DC - max
0 V
Discharge surge current (8/20) - max
20 kA
Nominal discharge surge current (8/20)
10 kA
Nominal voltage at AC
335 V
Nominal voltage at DC
0 V
Number of conductors without earthing
0
PV-voltage - max
0 V
Short-circuit breaking capacity (ISCCR)
0 kA
Voltage protection level
1.3 KV
Overcurrent protection device, parallel connection (fuse) - max
0 A
Overcurrent protection device, series connection (fuse) - max
100 A
Integrated short-circuit protection selective to fuse gG
0 A
