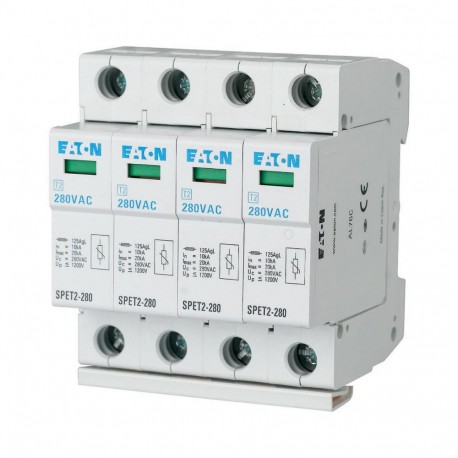

EATON - MOELLER SPET2-280/4 SPET2-280/4 168693 Y7-168693 EATON ELECTRIC Surge arresters complete, 4 p, 280VAC, 4, 5 kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPET2-280/4 168693 Y7-168693 EATON ELECTRIC Surge arresters complete, 4 p, 280VAC, 4, 5 kA

SPET2-280/4

168693

Y7-168693

EATON - MOELLER

1 Pcs.

Surge arresters complete, 4 p, 280VAC, 4, 5 kA SPET2-280/4 SPET2-280/4. Surge arrester complete, 4-pole, 280VAC, 4x10kA For protecting consumer systems against transient overvoltages caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, can be bussed with all Xtra Combinations switchgear, use in accordance with IEC 60364-5-53 clause 534

Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller SPET2-280/4 168693 Y7-168693 complete surge arrester assembly is built to provide four-pole overvoltage defense in complex electrical distribution setups. Electrical engineers specify these devices to protect multi-phase industrial power networks from sudden transient surges.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration DC (EF009926): No
  • System configuration IT (EF009927): No
  • System configuration TN (EF009928): Yes
  • System configuration TN-C (EF009929): No
  • System configuration TN-C-S (EF009933): No
  • System configuration TN-S (EF009930): Yes
  • System configuration TT (EF009931): No
  • System configuration other (EF009932): Yes
  • Number of conductors (without earthing) (EF001148): 4
  • Nominal discharge surge current (8/20) (EF004214): 10 kA
  • Max. discharge surge current (8/20) (EF012274): 20 kA
  • Nominal voltage AC (EF004220): 280 V
  • Nominal voltage DC (EF004221): 0 V
  • Max. continuous voltage AC (EF004198): 280 V
  • Max. continuous voltage DC (EF004777): 0 V
  • Max. PV-voltage (EF008795): 0 V

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
168693
Model Code
SPET2-280/4
EAN
4015081651825
Product Length/Depth
86 mm
Product Height
69 mm
Product Width
70 mm
Product Weight
0.365 kg
Compliances
RoHS conform

Product specifications

Type
Surge arrester
Application
Features
Category type 2
Frame
4 modular spacing
Degree of protection
IP20
Mounting method
DIN rail (top hat rail) 35 mm
Voltage protection level (L-N)
0 KV
Voltage protection level (N-PE)
0 KV
Signalling at the device
Optic
System configuration type
Other
TN
TN-S
Conductor cross section (flexible, fine-strand) - max
0 mm²
Conductor cross section (flexible, fine-strand) - min
0 mm²
Conductor cross section (solid, solid-strand) - max
25 mm²
Conductor cross section (solid, solid-strand) - min
25 mm²
Continuous voltage at AC - max
280 V
Continuous voltage at DC - max
0 V
Discharge surge current (8/20) - max
20 kA
Nominal discharge surge current (8/20)
10 kA
Nominal voltage at AC
280 V
Nominal voltage at DC
0 V
Number of conductors without earthing
4
PV-voltage - max
0 V
Short-circuit breaking capacity (ISCCR)
0 kA
Voltage protection level
1.2 KV
Overcurrent protection device, parallel connection (fuse) - max
0 A
Overcurrent protection device, series connection (fuse) - max
100 A
Integrated short-circuit protection selective to fuse gG
0 A
