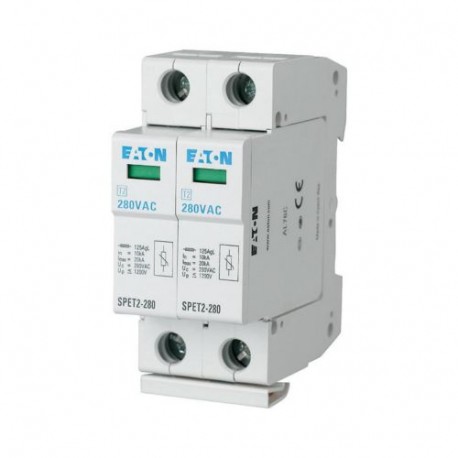

EATON - MOELLER SPET2-280/2 SPET2-280/2 168742 Y7-168742 EATON ELECTRIC Surge arresters complete, 2 p, 280VAC, 4, 5 kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPET2-280/2 168742 Y7-168742 EATON ELECTRIC Surge arresters complete, 2 p, 280VAC, 4, 5 kA

SPET2-280/2

168742

Y7-168742

EATON - MOELLER

1 Pcs.

Surge arresters complete, 2 p, 280VAC, 4, 5 kA SPET2-280/2 Surge arrester complete, 2-pole, 280VAC, 2x10kA For protecting consumer systems against transient overvoltages caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, can be bussed with all Xtra Combinations switchgear, use in accordance with IEC 60364-5-53 clause 534

Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Complete surge arresters provide ready-to-install overvoltage protection for industrial power distribution networks, combining base elements and protective modules into a single unit. The Eaton Moeller SPET2-280/2 system suppresses transient voltage spikes to safeguard downstream machinery and automation equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration DC (EF009926): No
  • System configuration IT (EF009927): No
  • System configuration TN (EF009928): Yes
  • System configuration TN-C (EF009929): No
  • System configuration TN-C-S (EF009933): No
  • System configuration TN-S (EF009930): Yes
  • System configuration TT (EF009931): No
  • System configuration other (EF009932): Yes
  • Number of conductors (without earthing) (EF001148): 2
  • Nominal discharge surge current (8/20) (EF004214): 10 kA
  • Max. discharge surge current (8/20) (EF012274): 20 kA
  • Nominal voltage AC (EF004220): 280 V
  • Nominal voltage DC (EF004221): 0 V
  • Max. continuous voltage AC (EF004198): 280 V
  • Max. continuous voltage DC (EF004777): 0 V
  • Max. PV-voltage (EF008795): 0 V

More info

▲
Surge arrester complete, 2-pole, 280VAC, 2x10kA
For protecting consumer systems against transient overvoltages caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, can be bussed with all Xtra Combinations switchgear, use in accordance with IEC 60364-5-53 clause 534

Delivery program

Products
Surge arresters
Application field
Residential buildings
Utility buildings
Open areas

Technical data ETIM 7.0

Earthing, lightning and surge protection (EG000021) / Surge protection device for power supply systems (EC000941)
Electric engineering, automation, process control engineering / Protection installation, device (electric) / Surge protection device (inner lightning protection) / Surge protection device for power supply systems ([email protected] [ACN278011])
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
Yes
Number of conductors (without earthing)
2
Nominal discharge surge current (8/20)
10 kA
Nominal voltage AC
280 V
Nominal voltage DC
0 V
Short-circuit breaking capacity (Isccr)
0 kA
Max. continuous voltage AC
280 V
Max. discharge surge current (8/20)
20 kA
Max. continuous voltage DC
0 V
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
2 modular spacing
Max. PV-voltage
0 V
Voltage protection level
1.2 kV
Max. conductor cross section solid (solid, stranded)
25 mm²
Max. conductor cross section flexible (fine-strand)
0 mm²
Voltage protection level L-N
0 kV
Voltage protection level N-PE
0 kV
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
