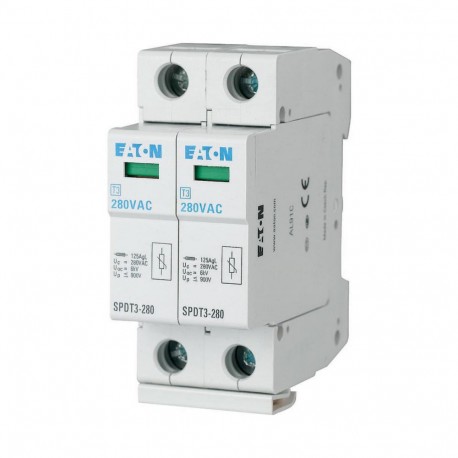

SPDT3-280/2 170485 Y7-170485 EATON ELECTRIC Surge arresters complete, 2p, 280VAC
SPDT3-280/2
170485
Y7-170485
EATON - MOELLER
1 Pcs.
Surge arresters complete, 2p, 280VAC
SPDT3-280/2
Eaton Moeller series xPole - SPDT3 Surge Protection Device. Surge arresters complete, 2p, 280VAC
For protecting end devices against transient overvoltages, meant for use as point-of-use protection for devices, test class III according to IEC 61643-1+A1, SPD-type T3 according to EN 61643-11, high upstream fuse rating possible 63 A gL / C 63, SPC-S-HK auxiliary contact for remote signaling can be added, no decoupling from upstream TVSS for consumer system necessary
Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series xPole - SPDT3 Surge protection device
Catalog Number
170485
Model Code
SPDT3-280/2
EAN
4015081669837
Product Length/Depth
80 mm
Product Height
68 mm
Product Width
35 mm
Product Weight
0.209 kg
Compliances
RoHS conform
Delivery program
Application
Type
Surge arrester
Technical data - electrical
Voltage protection level
1.4 KV
Voltage protection level (L-N)
0 KV
Voltage protection level (N-PE)
0 KV
Nominal voltage at AC
280 V
Nominal voltage at DC
0 V
Continuous voltage at AC - max
280 V
Continuous voltage at DC - max
0 V
PV-voltage - max
0 V
Nominal discharge surge current (8/20)
5 kA
Discharge surge current (8/20) - max
10 kA
Short-circuit breaking capacity (ISCCR)
0 kA
Signalling at the device
Optic
Technical data - mechanical
Frame
2 modular spacing
Mounting method
DIN rail (top hat rail) 35 mm
Number of conductors without earthing
2
Conductor cross section (flexible, fine-strand) - min
0 mm²
Conductor cross section (flexible, fine-strand) - max
0 mm²
Conductor cross section (solid, solid-strand) - min
25 mm²
Conductor cross section (solid, solid-strand) - max
25 mm²
Degree of protection
IP20
Additional information
System configuration type
Other
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | No |
| System configuration IT (EF009927) | No |
| System configuration TN (EF009928) | No |
| System configuration TN-C (EF009929) | No |
| System configuration TN-C-S (EF009933) | No |
| System configuration TN-S (EF009930) | No |
| System configuration TT (EF009931) | No |
| System configuration other (EF009932) | Yes |
| Number of conductors (without earthing) (EF001148) | 2 |
| Nominal discharge surge current (8/20) (EF004214) | 5 kA |
| Max. discharge surge current (8/20) (EF012274) | 10 kA |
| Nominal voltage AC (EF004220) | 280 V |
| Nominal voltage DC (EF004221) | 0 V |
| Max. continuous voltage AC (EF004198) | 280 V |
| Max. continuous voltage DC (EF004777) | 0 V |
| Max. PV-voltage (EF008795) | 0 V |
| Voltage protection level (EF003525) | 1.4 kV |
| Voltage protection level L-N (EF004236) | 0 kV |
| Voltage protection level N-PE (EF008796) | 0 kV |
| Max. overcurrent protection device, parallel connection (fuse) (EF015962) | 0 A |
| Max. overcurrent protection device, series connection (fuse) (EF015963) | 125 A |
| Short-circuit breaking capacity (Isccr) (EF012627) | 0 kA |
| Integrated short-circuit protection (EF016000) | No |
| Integrated short-circuit protection selective to fuse gG (EF016001) | 0 A |
| Integrated backup fuse (EF008797) | No |
| Leakage-current free (EF016002) | No |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | 2 modular spacing |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 25 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 0 mm² |
| With remote signalling contact (EF000422) | No |
| Signalling at the device (EF004241) | Optic |
| Category type 2 (EF004230) | No |
| Degree of protection (IP) (EF005474) | IP20 |
