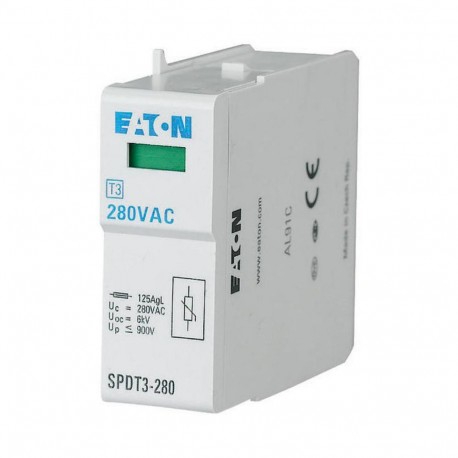

EATON - MOELLER SPDT3-280 SPDT3-280 170484 Y7-170484 EATON ELECTRIC Surge arrester plug-in unit, 280VAC, 1p View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPDT3-280 170484 Y7-170484 EATON ELECTRIC Surge arrester plug-in unit, 280VAC, 1p

SPDT3-280

170484

Y7-170484

EATON - MOELLER

1 Pcs.

Surge arrester plug-in unit, 280VAC, 1p SPDT3-280 Eaton Moeller series xPole - SPDT3 Surge Protection Device. Surge arrester plug-in unit, 280VAC, 1p For protecting end devices against transient overvoltages, meant for use as point-of-use protection for devices, test class III according to IEC 61643-1+A1, SPD-type T3 according to EN 61643-11, high upstream fuse rating possible 63 A gL / C 63, SPC-S-HK auxiliary contact for remote signaling can be added, no decoupling from upstream TVSS for consumer system necessary

Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller produces the SPDT3-280 170484 Y7-170484 surge arrester plug-in unit, designed to protect electrical networks against sudden voltage spikes. Protective modules of this nature are widely installed within control panels and distribution systems to divert harmful electrical surges away from critical industrial automation equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration DC (EF009926): No
  • System configuration IT (EF009927): No
  • System configuration TN (EF009928): No
  • System configuration TN-C (EF009929): No
  • System configuration TN-C-S (EF009933): No
  • System configuration TN-S (EF009930): No
  • System configuration TT (EF009931): No
  • System configuration other (EF009932): Yes
  • Number of conductors (without earthing) (EF001148): 0
  • Nominal discharge surge current (8/20) (EF004214): 5 kA
  • Max. discharge surge current (8/20) (EF012274): 10 kA
  • Nominal voltage AC (EF004220): 280 V
  • Nominal voltage DC (EF004221): 0 V
  • Max. continuous voltage AC (EF004198): 280 V
  • Max. continuous voltage DC (EF004777): 0 V
  • Max. PV-voltage (EF008795): 0 V

More info

▲

General specifications

Product Name
Eaton Moeller series xPole - SPDT3 Surge protection device
Catalog Number
170484
Model Code
SPDT3-280
EAN
4015081669820
Product Length/Depth
52 mm
Product Height
60 mm
Product Width
17.5 mm
Product Weight
0.044 kg
Compliances
RoHS conform

Delivery program

Application
Open areasResidential buildingsUtility buildings
Type
Surge arrester

Technical data - electrical

Voltage protection level
1.4 KV
Voltage protection level (L-N)
0 KV
Voltage protection level (N-PE)
0 KV
Nominal voltage at AC
280 V
Nominal voltage at DC
0 V
Continuous voltage at AC - max
280 V
Continuous voltage at DC - max
0 V
PV-voltage - max
0 V
Nominal discharge surge current (8/20)
5 kA
Discharge surge current (8/20) - max
10 kA
Short-circuit breaking capacity (ISCCR)
0 kA
Signalling at the device
Optic

Technical data - mechanical

Frame
1 modular spacing
Mounting method
On basic element
Number of conductors without earthing
0
Conductor cross section (flexible, fine-strand) - min
0 mm²
Conductor cross section (flexible, fine-strand) - max
0 mm²
Conductor cross section (solid, solid-strand) - min
25 mm²
Conductor cross section (solid, solid-strand) - max
25 mm²
Degree of protection
IP20

Additional information

System configuration type
Other
