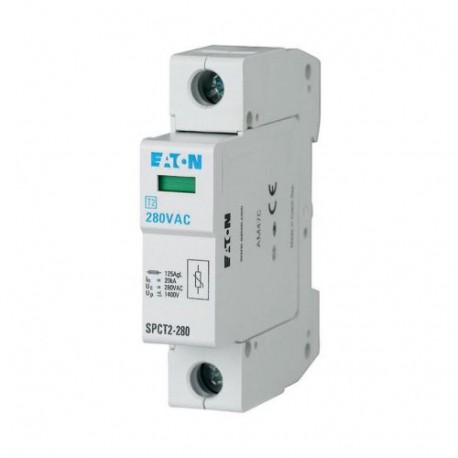

EATON - MOELLER SPCT2-385/1 SPCT2-385/1 167603 Y7-167603 EATON ELECTRIC Plug-in surge arresters, 1p, 385VAC, 20 kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPCT2-385/1 167603 Y7-167603 EATON ELECTRIC Plug-in surge arresters, 1p, 385VAC, 20 kA

SPCT2-385/1

167603

Y7-167603

EATON - MOELLER

1 Pcs.

Plug-in surge arresters, 1p, 385VAC, 20 kA SPCT2-385/1 For protecting consumer systems against transient overvoltages caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, SPC-S-HK auxiliary contact for remote signaling can be added, can be bussed with all Xtra Combinations switchgear caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, SPC-S-HK auxiliary contact for remote signaling can be added, can be bussed with all Xtra Combinations switchgear

Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An SPCT2-385/1 167603 Y7-167603 EATON ELECTRIC Plug-in surge arresters, 1p, 385VAC, 20 kA manufactured by Eaton Moeller functions as an effective overvoltage protection barrier for industrial electrical networks. Plug-in arresters of this classification are typically mounted on DIN rails inside distribution switchboards to intercept destructive voltage transients before they reach sensitive components.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration DC (EF009926): No
  • System configuration IT (EF009927): No
  • System configuration TN (EF009928): Yes
  • System configuration TN-C (EF009929): No
  • System configuration TN-C-S (EF009933): No
  • System configuration TN-S (EF009930): Yes
  • System configuration TT (EF009931): No
  • System configuration other (EF009932): Yes
  • Number of conductors (without earthing) (EF001148): 1
  • Nominal discharge surge current (8/20) (EF004214): 20 kA
  • Max. discharge surge current (8/20) (EF012274): 40 kA
  • Nominal voltage AC (EF004220): 385 V
  • Nominal voltage DC (EF004221): 0 V
  • Max. continuous voltage AC (EF004198): 385 V
  • Max. continuous voltage DC (EF004777): 0 V
  • Max. PV-voltage (EF008795): 0 V

More info

▲

General specifications

Product Name
Eaton Moeller series xPole - SPCT2 Surge protection device
Catalog Number
167603
Model Code
SPCT2-385/1
EAN
4015081640942
Product Length/Depth
80 mm
Product Height
67 mm
Product Width
17.5 mm
Product Weight
0.102 kg
Compliances
RoHS conform

Delivery program

Application
Type
Surge arrester

Technical data - electrical

Voltage protection level
1.8 KV
Voltage protection level (L-N)
0 KV
Voltage protection level (N-PE)
0 KV
Nominal voltage at AC
385 V
Nominal voltage at DC
0 V
Continuous voltage at AC - max
385 V
Continuous voltage at DC - max
0 V
PV-voltage - max
0 V
Nominal discharge surge current (8/20)
20 kA
Discharge surge current (8/20) - max
40 kA
Short-circuit breaking capacity (ISCCR)
0 kA
Signalling at the device
Optic

Technical data - mechanical

Frame
1 modular spacing
Mounting method
DIN rail (top hat rail) 35 mm
Number of conductors without earthing
1
Conductor cross section (flexible, fine-strand) - min
35 mm²
Conductor cross section (flexible, fine-strand) - max
35 mm²
Conductor cross section (solid, solid-strand) - min
25 mm²
Conductor cross section (solid, solid-strand) - max
25 mm²
Degree of protection
IP20

Additional information

Features
Category type 2
System configuration type
TN
Other
TN-S

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
