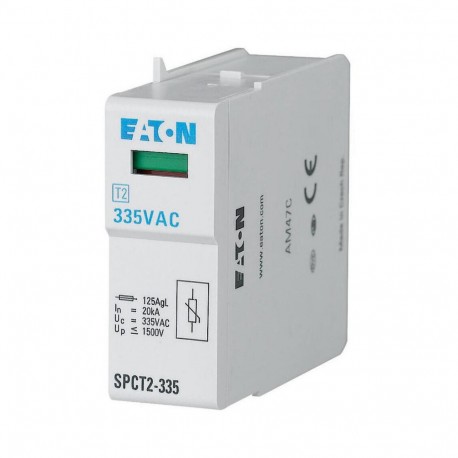

EATON - MOELLER SPCT2-335 SPCT2-335 167597 Y7-167597 EATON ELECTRIC Surge arrester plug-in unit, 335VAC, 20 kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPCT2-335 167597 Y7-167597 EATON ELECTRIC Surge arrester plug-in unit, 335VAC, 20 kA

SPCT2-335

167597

Y7-167597

EATON - MOELLER

1 Pcs.

Surge arrester plug-in unit, 335VAC, 20 kA SPCT2-335 Eaton Moeller series xPole - SPCT2 Surge Protection Device. Surge arrester plug-in unit, 335VAC, 20 kA For protecting consumer systems against transient overvoltages caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, SPC-S-HK auxiliary contact for remote signaling can be added, can be bussed with all Xtra Combinations switchgear

Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller SPCT2-335 surge arrester plug-in unit provides modular overvoltage protection for industrial and commercial electrical networks. Engineers incorporate plug-in arresters into distribution boards to allow rapid cartridge replacement following a major surge event without rewiring the assembly.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration DC (EF009926): No
  • System configuration IT (EF009927): No
  • System configuration TN (EF009928): Yes
  • System configuration TN-C (EF009929): No
  • System configuration TN-C-S (EF009933): No
  • System configuration TN-S (EF009930): No
  • System configuration TT (EF009931): No
  • System configuration other (EF009932): Yes
  • Number of conductors (without earthing) (EF001148): 0
  • Nominal discharge surge current (8/20) (EF004214): 20 kA
  • Max. discharge surge current (8/20) (EF012274): 40 kA
  • Nominal voltage AC (EF004220): 335 V
  • Nominal voltage DC (EF004221): 0 V
  • Max. continuous voltage AC (EF004198): 335 V
  • Max. continuous voltage DC (EF004777): 0 V
  • Max. PV-voltage (EF008795): 0 V

More info

▲

General specifications

Product Name
Eaton Moeller series xPole - SPCT2 Surge protection device
Catalog Number
167597
Model Code
SPCT2-335
EAN
4015081640881
Product Length/Depth
47 mm
Product Height
54 mm
Product Width
17.5 mm
Product Weight
0.047 kg
Compliances
RoHS conform

Delivery program

Application
Type
Surge arrester

Technical data - electrical

Voltage protection level
1.6 KV
Voltage protection level (L-N)
0 KV
Voltage protection level (N-PE)
0 KV
Nominal voltage at AC
335 V
Nominal voltage at DC
0 V
Continuous voltage at AC - max
335 V
Continuous voltage at DC - max
0 V
PV-voltage - max
0 V
Nominal discharge surge current (8/20)
20 kA
Discharge surge current (8/20) - max
40 kA
Short-circuit breaking capacity (ISCCR)
0 kA
Signalling at the device
Optic

Technical data - mechanical

Frame
1 modular spacing
Mounting method
On basic element
Number of conductors without earthing
0
Conductor cross section (flexible, fine-strand) - min
0 mm²
Conductor cross section (flexible, fine-strand) - max
0 mm²
Conductor cross section (solid, solid-strand) - min
0 mm²
Conductor cross section (solid, solid-strand) - max
0 mm²
Degree of protection
IP20

Additional information

Features
Category type 2
System configuration type
TN
Other
