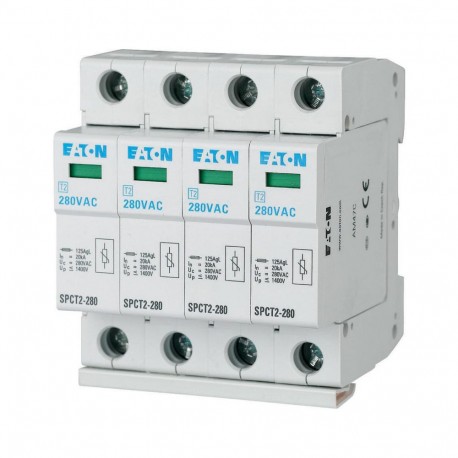

SPCT2-280/4 167596 Y7-167596 EATON ELECTRIC Plug-in surge arresters, 4p, 280VAC, 4x20kA
SPCT2-280/4
167596
Y7-167596
EATON - MOELLER
1 Pcs.
Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Four-pole plug-in surge arresters like the Eaton Moeller SPCT2-280/4 offer comprehensive multi-conductor defense against transient electrical overvoltages in complex industrial environments. These devices mount into standard distribution panels to divert harmful electrical surges away from sensitive facility hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- System configuration DC (EF009926): No
- System configuration IT (EF009927): No
- System configuration TN (EF009928): Yes
- System configuration TN-C (EF009929): No
- System configuration TN-C-S (EF009933): Yes
- System configuration TN-S (EF009930): Yes
- System configuration TT (EF009931): No
- System configuration other (EF009932): Yes
- Number of conductors (without earthing) (EF001148): 4
- Nominal discharge surge current (8/20) (EF004214): 20 kA
- Max. discharge surge current (8/20) (EF012274): 40 kA
- Nominal voltage AC (EF004220): 280 V
- Nominal voltage DC (EF004221): 0 V
- Max. continuous voltage AC (EF004198): 280 V
- Max. continuous voltage DC (EF004777): 0 V
- Max. PV-voltage (EF008795): 0 V
More info
▲General specifications
Delivery program
Technical data - electrical
Technical data - mechanical
Additional information
Other
TN
TN-C-S
