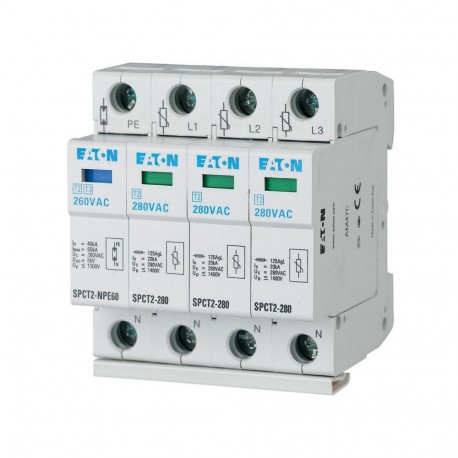

SPCT2-280-3+NPE 167620 Y7-167620 EATON ELECTRIC Plug-in surge arresters, 3pole+N, 280VAC, 20 kA
SPCT2-280-3+NPE
167620
Y7-167620
EATON - MOELLER
1 Pcs.
Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Plug-in surge arrester from Eaton Moeller, designated as SPCT2-280-3+NPE, provides comprehensive multi-pole overvoltage protection for commercial and industrial electrical distribution grids. Such modular surge arresters are typically installed in main switchboards to divert high-energy transients safely away from sensitive downstream loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- System configuration DC (EF009926): No
- System configuration IT (EF009927): Yes
- System configuration TN (EF009928): Yes
- System configuration TN-C (EF009929): No
- System configuration TN-C-S (EF009933): Yes
- System configuration TN-S (EF009930): Yes
- System configuration TT (EF009931): Yes
- System configuration other (EF009932): Yes
- Number of conductors (without earthing) (EF001148): 3
- Nominal discharge surge current (8/20) (EF004214): 20 kA
- Max. discharge surge current (8/20) (EF012274): 40 kA
- Nominal voltage AC (EF004220): 280 V
- Nominal voltage DC (EF004221): 0 V
- Max. continuous voltage AC (EF004198): 280 V
- Max. continuous voltage DC (EF004777): 0 V
- Max. PV-voltage (EF008795): 0 V
More info
▲General specifications
Delivery program
Technical data - electrical
Technical data - mechanical
Additional information
IT
TN-C-S
TN
Other
TN-S
