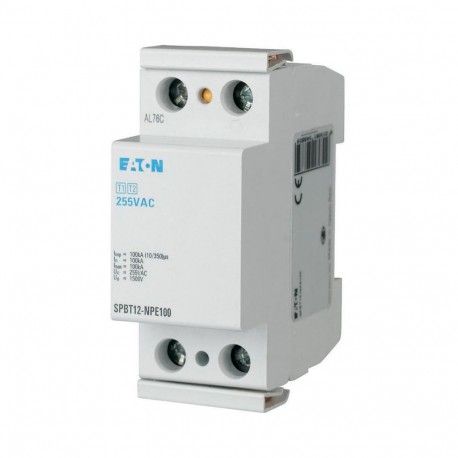

SPBT12-NPE100 158307 Y7-158307 EATON ELECTRIC Lightning current and surge arresters, 100 kA, N-space unit

SPBT12-NPE100

158307

Y7-158307

EATON - MOELLER

1 Pcs.

Lightning current and surge arresters, 100 kA, N-space unit SPBT12-NPE100 Eaton Moeller series xPole - SPBT12 Surge Protection Device. Lightning current and surge arresters, 100 kA, N-space unit For protecting consumer systems against transient overvoltages caused by direct and indirect lightning strikes and switching operations, use in accordance with IEC 60364-5-53 section 534, iI according to IEC 61643-1, SPD-type T1, T2 according to EN 61643-11, lightning protection classes III and IV as per IEC 62305

Automation > Combined arrester for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller SPBT12-NPE100 lightning current and surge arrester functions as a specialized neutral-to-earth module in multi-phase earthing systems. This space unit safely manages high-capacity fault currents that occur between the neutral conductor and protective earth during lightning events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration DC (EF009926): No
  • System configuration IT (EF009927): No
  • System configuration TN (EF009928): Yes
  • System configuration TN-C (EF009929): No
  • System configuration TN-C-S (EF009933): No
  • System configuration TN-S (EF009930): No
  • System configuration TT (EF009931): No
  • System configuration other (EF009932): Yes
  • Number of poles (EF001391): 1
  • Lightning impulse current (10/350 µs) (EF000421): 100 kA
  • Max. continuous voltage AC (EF004198): 255 V
  • Max. continuous voltage DC (EF004777): 0 V
  • Nominal voltage AC (EF004220): 255 V
  • Nominal voltage DC (EF004221): 0 V
  • Max. PV-voltage (EF008795): 0 V
  • Voltage protection level (EF003525): 1.5 kV

More info

▲

General specifications

Product Name
Eaton Moeller series xPole - SPBT12 Surge protection device
Catalog Number
158307
Model Code
SPBT12-NPE100
EAN
4015081548859
Product Length/Depth
80 mm
Product Height
65 mm
Product Width
35 mm
Product Weight
0.241 kg
Compliances
RoHS conform

Delivery program

Application
Number of poles
Single-pole
Type
Surge arrester

Technical data - electrical

Voltage protection level
1.5 KV
Voltage protection level (DC+ - DC-)
0 KV
Voltage protection level (DC+/DC- - PE)
0 KV
Voltage protection level (L-N)
0 KV
Voltage protection level (L-PE)
1.5 KV
Voltage protection level (N-PE)
1.5 KV
Nominal voltage at AC
255 V
Nominal voltage at DC
0 V
Continuous voltage at AC - max
255 V
Continuous voltage at DC - max
0 V
PV-voltage - max
0 V
Lightning impulse current (10/350 µs)
100 kA
Follow current extinguishing capability
0 kA
Signalling at the device
Optic
Specific energy (W/R)
2500 kJ/Ohm

Technical data - mechanical

Frame
2 modular spacing
Mounting method
DIN rail (top hat rail) 35 mm
Conductor cross section (flexible, fine-strand) - max
0 mm²
Conductor cross section (solid, solid-strand) - max
35 mm²
Degree of protection
IP20

Design verification as per IEC/EN 61439 - technical data

Rated operational current for specified heat dissipation (In)
0 A
Heat dissipation per pole, current-dependent
0 W
Equipment heat dissipation, current-dependent
0 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
70 °C

Additional information

Features
Voltage switching spark gap technology
System configuration type
TN
Other
Test class
Type 1 + 2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
