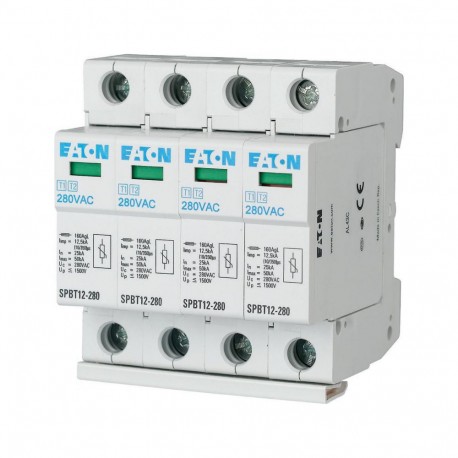

SPBT12-280/4 158331 Y7-158331 EATON ELECTRIC Lightning current and surge arresters kit, TN-S kit, 4p
SPBT12-280/4
158331
Y7-158331
EATON - MOELLER
1 Pcs.
Lightning current and surge arresters kit, TN-S kit, 4p
SPBT12-280/4
Eaton Moeller series xPole - SPBT12 Surge Protection Device. Lightning current and surge arresters kit, TN-S kit, 4p
For protecting consumer systems against transient overvoltages caused by direct and indirect lightning strikes and switching operations, use in accordance with IEC 60364-5-53 section 534, iI according to IEC 61643-1, SPD-type T1, T2 according to EN 61643-11, lightning protection classes III and IV as per IEC 62305, type without remote signaling
Automation > Combined arrester for power supply systems
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series xPole - SPBT12 Surge protection device
Catalog Number
158331
Model Code
SPBT12-280/4
EAN
4015081548897
Product Length/Depth
86 mm
Product Height
69 mm
Product Width
70 mm
Product Weight
0.574 kg
Compliances
RoHS conform
Delivery program
Application
Number of poles
Four-pole
Type
Surge arrester
Technical data - electrical
Voltage protection level
1.5 KV
Voltage protection level (DC+ - DC-)
0 KV
Voltage protection level (DC+/DC- - PE)
0 KV
Voltage protection level (L-N)
0 KV
Voltage protection level (L-PE)
1.5 KV
Voltage protection level (N-PE)
0 KV
Nominal voltage at AC
280 V
Nominal voltage at DC
0 V
Continuous voltage at AC - max
280 V
Continuous voltage at DC - max
0 V
PV-voltage - max
0 V
Lightning impulse current (10/350 µs)
12.5 kA
Follow current extinguishing capability
0 kA
Signalling at the device
Optic
Specific energy (W/R)
39.1 kJ/Ohm
Technical data - mechanical
Frame
4 modular spacing
Mounting method
DIN rail (top hat rail) 35 mm
Conductor cross section (flexible, fine-strand) - max
35 mm²
Conductor cross section (solid, solid-strand) - max
25 mm²
Degree of protection
IP20
Additional information
System configuration type
Other
TN
TN-S
TT
TN
TN-S
TT
Test class
Type 1 + 2
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | No |
| System configuration IT (EF009927) | No |
| System configuration TN (EF009928) | Yes |
| System configuration TN-C (EF009929) | No |
| System configuration TN-C-S (EF009933) | No |
| System configuration TN-S (EF009930) | Yes |
| System configuration TT (EF009931) | Yes |
| System configuration other (EF009932) | Yes |
| Number of poles (EF001391) | 4 |
| Lightning impulse current (10/350 µs) (EF000421) | 12.5 kA |
| Max. continuous voltage AC (EF004198) | 280 V |
| Max. continuous voltage DC (EF004777) | 0 V |
| Nominal voltage AC (EF004220) | 280 V |
| Nominal voltage DC (EF004221) | 0 V |
| Max. PV-voltage (EF008795) | 0 V |
| Voltage protection level (EF003525) | 1.5 kV |
| Voltage protection level L-N (EF004236) | 0 kV |
| Voltage protection level L-PE (EF012276) | 1.5 kV |
| Voltage protection level N-PE (EF008796) | 0 kV |
| Voltage protection level (DC+ - DC-) (EF009643) | 0 kV |
| Voltage protection level (DC+/DC- - PE) (EF009644) | 0 kV |
| Follow current extinguishing capability (EF004193) | 0 kA |
| Specific energy (W/R) (EF009797) | 39.1 kJ/Ohm |
| Max. overcurrent protection device, parallel connection (fuse) (EF015962) | 0 A |
| Max. overcurrent protection device, series connection (fuse) (EF015963) | 160 A |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | 4 modular spacing |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 25 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 35 mm² |
| Remote signalling (EF004192) | No |
| Signalling at the device (EF004241) | Optic |
| Test class (EF004228) | Type 1 + 2 |
| Integrated backup fuse (EF008797) | No |
| Energy-coordinated protection effect with regard to the terminal equipment (EF009798) | No |
| Voltage switching spark gap technology (EF016003) | No |
| Overcurrent protected voltage tapping (EF016004) | No |
| Degree of protection (IP) (EF005474) | IP20 |
