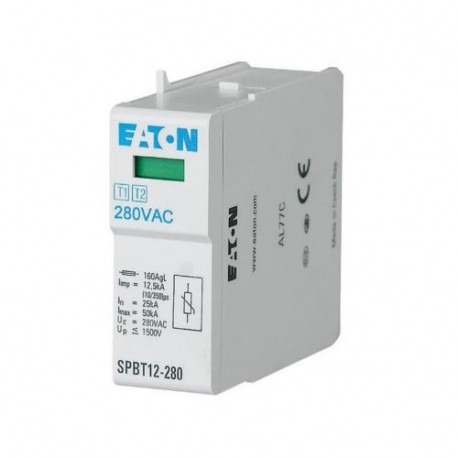

SPBT12-280 167341 Y7-167341 EATON ELECTRIC Lightning current and surge arresters, plug-in unit, 12, 5 kA
SPBT12-280
167341
Y7-167341
EATON - MOELLER
1 Pcs.
Automation > Combined arrester for power supply systems
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller SPBT12-280 lightning current and surge arresters serve as protective components designed to absorb and divert high-energy electrical transients away from sensitive downstream industrial hardware. Implementing these devices safeguards electrical distribution architectures from severe voltage spikes caused by direct or indirect atmospheric discharges. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- System configuration DC (EF009926): No
- System configuration IT (EF009927): No
- System configuration TN (EF009928): Yes
- System configuration TN-C (EF009929): No
- System configuration TN-C-S (EF009933): No
- System configuration TN-S (EF009930): No
- System configuration TT (EF009931): No
- System configuration other (EF009932): Yes
- Number of poles (EF001391): 1
- Lightning impulse current (10/350 µs) (EF000421): 12.5 kA
- Max. continuous voltage AC (EF004198): 280 V
- Max. continuous voltage DC (EF004777): 0 V
- Nominal voltage AC (EF004220): 280 V
- Nominal voltage DC (EF004221): 0 V
- Max. PV-voltage (EF008795): 0 V
- Voltage protection level (EF003525): 1.5 kV
