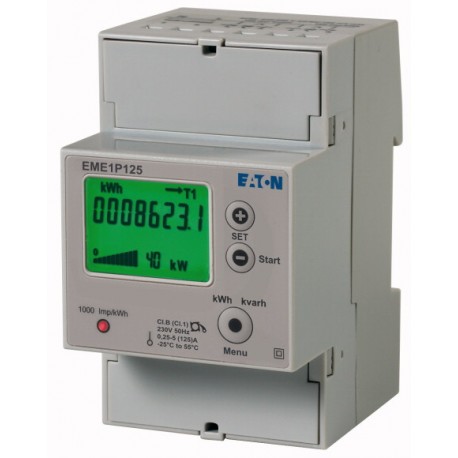

EME1P125MID 167404 EATON ELECTRIC Power meter, 1 N, 125 A x, MID
EME1P125MID
167404
EATON - MOELLER
1 Pcs.
Power meter, 1 N, 125 A_x, MID
Digital real/reactive power meter with instantaneous real/reactive power display and IR communication interface on the side - 2 tariffs, real and reactive power meter for single-phase alternating current with digital counter, displays up to 8 numbers (2 decimals), with 2 S0 interfaces for real/reactive power with 2 tariffs, green backlit LCD display, for direct connection up to 125 A, display with 8 numbers for showing the eight power values, accuracy class 1 for real power and power as per EN 50470-3 (B), accuracy class 2 for reactive power and power as per EN 62053-23 , perfect operating current range (Ist ... Imax) for directly connecting 125 A = 0.020 ... 125 A, standard version with communications-capable add-on of 1 space units, bus transmission, power register can be set to zero (not on MID type), power register for input and output, displays instantaneous real or reactive power, sealable terminal covers
Automation > Kilowatt-hour meter
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The EME1P125MID Eaton Moeller power meter delivers direct-measurement energy tracking for single-phase electrical circuits. Facilities use these electromechanical MID-approved devices to verify electricity consumption, manage multi-tariff billing structures, and monitor loads in commercial installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of meter (EF005441): Electromechanical
- Nominal current (In) (EF008873): 125 A
- Max. current (Imax) (EF000877): 125 A
- Nominal voltage (Un) N-L (EF008871): 184 V
- Nominal voltage (Un) L-L (EF008872): 0 V
- Frequency (EF000416): 50 Hz
- Accuracy class (EF008842): B
- Pole type (EF008843): Single phase
- Model (EF000010): Direct measurement
- Energy type (EF007135): Effective power and reactive power
- Suitable for (EF000073): Purchase/supply
- Tariff type (EF007550): Two-tariff
- Tariff control (EF008834): Internal
- Measurement type load profile (EF008844): No
- Escapement mechanism (EF008835): No
- Calibrated (EF008836): Yes
More info
▲Power meter, 1N, 125A, MID
Digital real/reactive power meter with instantaneous real/reactive power display and IR communication interface on the side - 2 tariffs, real and reactive power meter for single-phase alternating current with digital counter, displays up to 8 numbers (2 decimals), with 2 S0 interfaces for real/reactive power with 2 tariffs, green backlit LCD display, for direct connection up to 125 A, display with 8 numbers for showing the eight power values, accuracy class 1 for real power and power as per EN 50470-3 (B), accuracy class 2 for reactive power and power as per EN 62053-23, perfect operating current range (Ist ... Imax) for directly connecting 125 A = 0.020 ... 125 A, standard version with communications-capable add-on of 1 space units, bus transmission, power register can be set to zero (not on MID type), power register for input and output, displays instantaneous real or reactive power, sealable terminal covers
Technical data ETIM 7.0
Meters (EG000045) / Kilowatt-hour meter (EC001506)
Electric engineering, automation, process control engineering / Electrical installation, device / Modular serial built-in device for electrical circuit distributors / Electronic electricity meter ([email protected] [AFZ828014])
Type of meter
Electromechanical
Nominal current (In)
125 A
Max. current (Imax)
125 A
Nominal voltage (Un) N-L
184 - 276 V
Nominal voltage (Un) L-L
0 - 0 V
Frequency
50 - 50 Hz
Accuracy class
B
Pole type
Single phase
Model
Direct measurement
Energy type
Effective power and blind power
Suitable for
Purchase/supply
Tariff type
Two-tariff
Tariff control
Internal
Measuring type load profile
No
Escapement mechanism
No
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
0 - 0 Imp/kWh (kvarh)
Type of indication
Digital
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
3.1
Type of interface
Other
EEC40 signature
No
With lock code
Yes
Number of positions total (counter)
8
Degree of protection (IP)
IP20
Degree of protection (NEMA)
