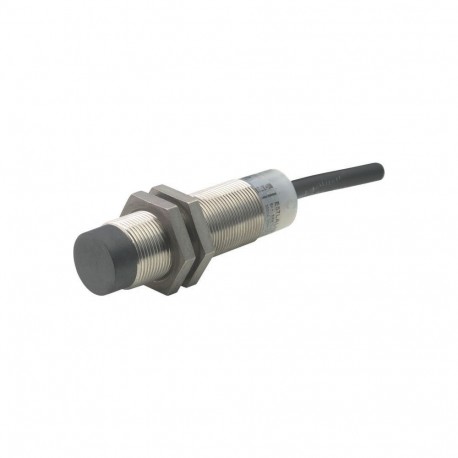

E57SBL30A4E 136173 Y7-136173 EATON ELECTRIC Proximity switch, inductive, 1 N/C, Sn 15mm, 2L, 20-250VAC, M30,..
E57SBL30A4E
136173
Y7-136173
EATON - MOELLER
1 Pcs.
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller E57SBL30A4E is an inductive proximity switch built to sense metallic objects without physical contact in harsh industrial surroundings. Plant operators incorporate these switches into safety interlocks, feeder mechanisms, and automated motion control systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 0 mm
- Height of sensor (EF007283): 0 mm
- Length of sensor (EF007334): 69 mm
- Diameter sensor (EF007111): 30 mm
- Mechanical mounting condition for sensor (EF004041): Not flat
- Switching distance (EF003647): 15 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Breaker contact
- Type of switching output (EF003962): 2-wire
- Type of electric connection (EF003961): Cable
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Type of actuation (EF006949): Metallic Target
- Construction type housing (EF004008): Cylinder, screw-thread
- Cascadable (EF000507): No
- Max. output current at protected output (EF004035): 0 mA
More info
▲General specifications
CSA Class No.: 3211-03
CSA-C22.2 No. 14
UL File No.: E166051
CSA
UL 508
CSA File No.: 50513
IEC/EN 60947-5-2
CE
UL Category Control No.: NRKH, NRKH7
Product specifications
2 m connection cable
NEMA 4X, 6, 13
1 - 500 mA (Ie, at 25 °C)
